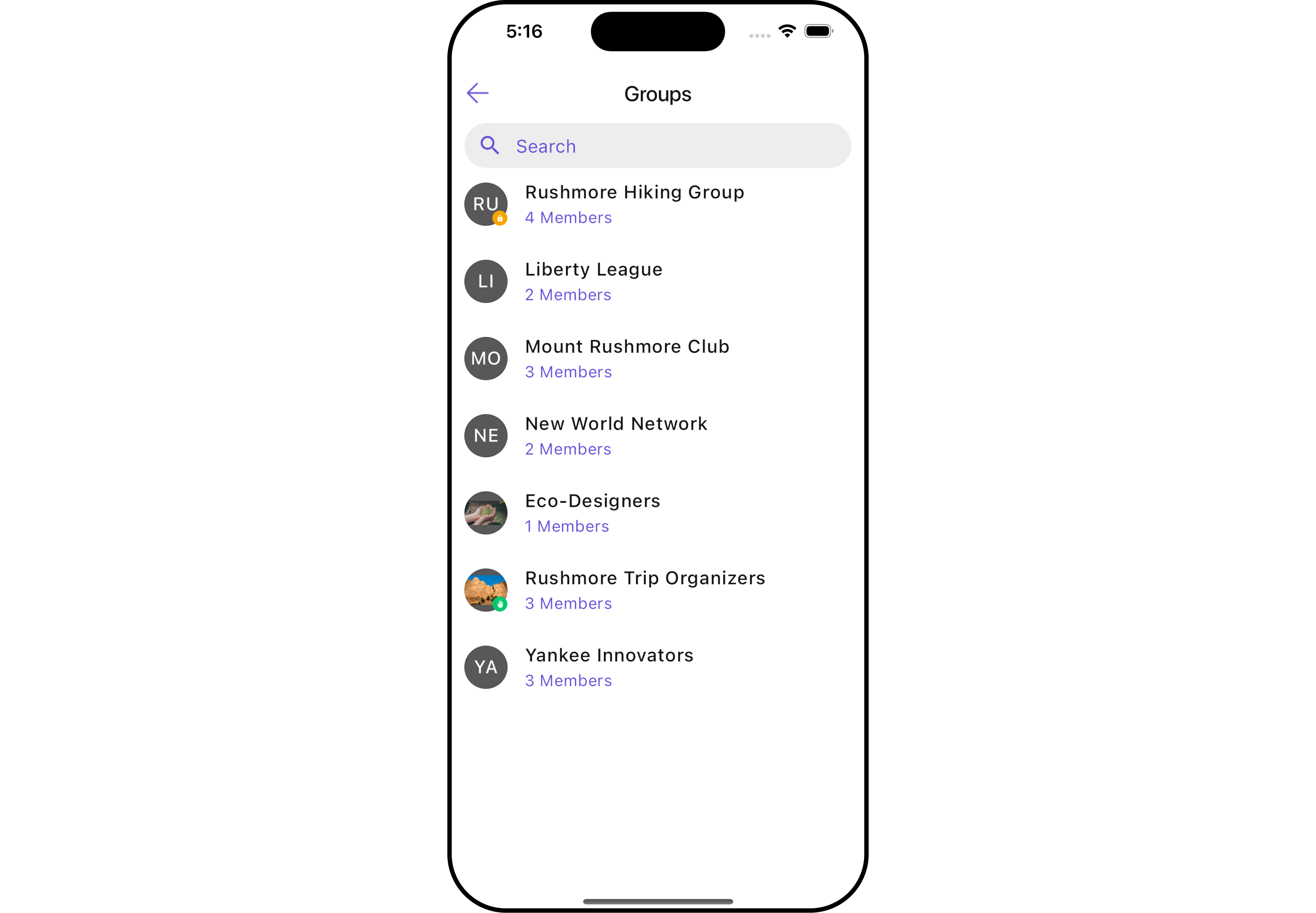

Overview

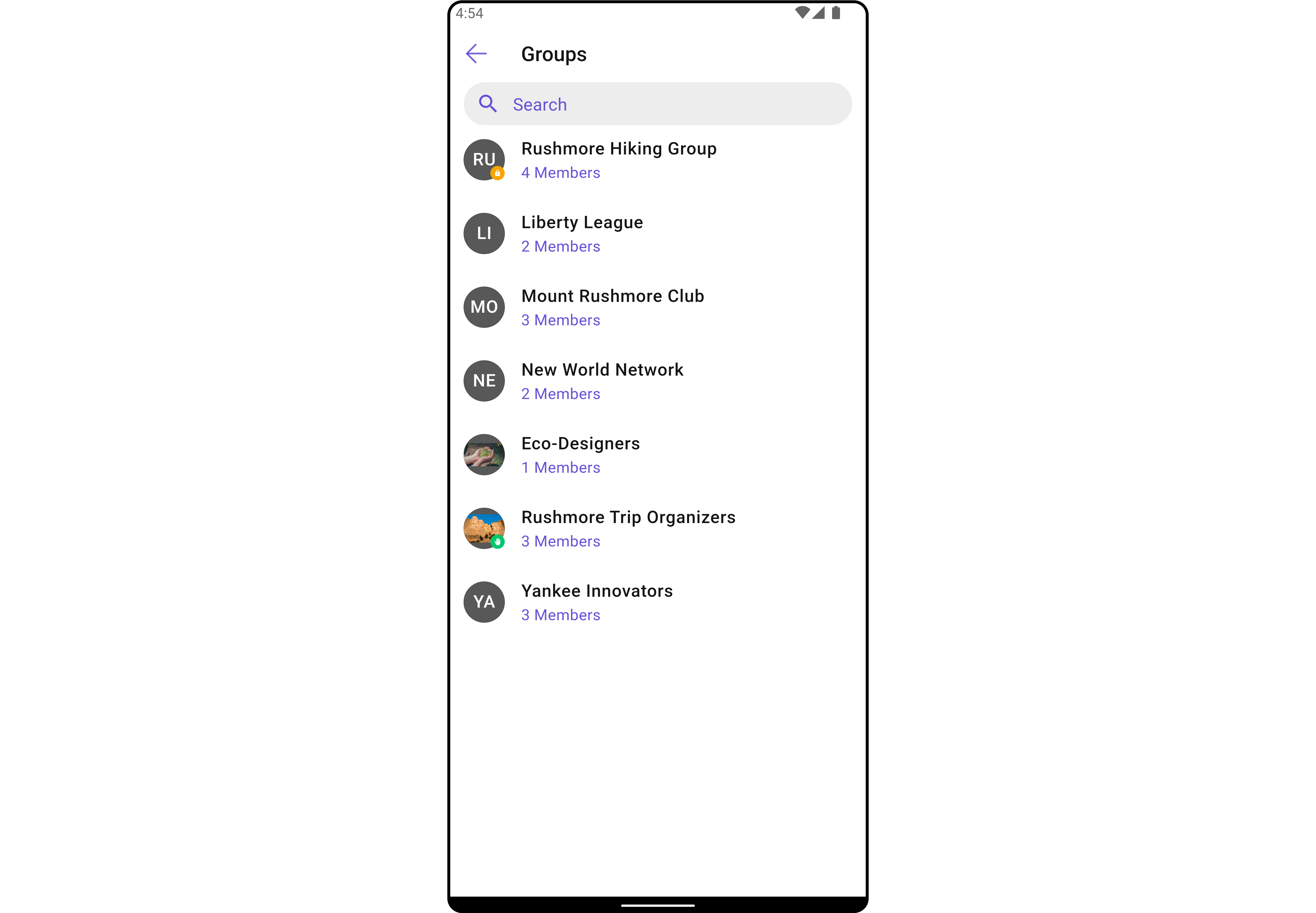

CometChatGroups functions as a standalone Widget designed to create a screen displaying a list of groups, with the added functionality of enabling users to search for specific groups. Acting as a container widget, CometChatGroups encapsulates and formats the CometChatListBase and CometChatGroupList widgets without introducing any additional behavior of its own.

Android
iOS

The CometChatGroups widget is composed of the following BaseWidget:

Widgets	Description
CometChatListBase	`CometChatListBase` serves as a container widget equipped with a title (navigationBar), search functionality (search-bar), background settings, and a container for embedding a list view.
CometChatListItem	This widget renders information extracted from a `Group` object onto a tile, featuring a title, subtitle, leading view, and trailing view.

Usage

Integration

As CometChatGroups is a custom widget, it can be launched directly by user actions such as button clicks or other interactions. You can launch CometChatGroups directly using Navigator.push, or you can define it as a widget within the build method of your State class.

1. Using Navigator to Launch `CometChatGroups`

Dart

Navigator.push(context, MaterialPageRoute(builder: (context) => const CometChatGroups()));

2. Embedding `CometChatGroups` as a Widget in the build Method

Dart

import 'package:cometchat_chat_uikit/cometchat_chat_uikit.dart';
import 'package:flutter/material.dart';

class Groups extends StatefulWidget {
  const Groups({super.key});

  @override
  State<Groups> createState() => _GroupsState();
}

class _GroupsState extends State<Groups> {

  @override
  Widget build(BuildContext context) {
    return const Scaffold(
        body: SafeArea(
            child: CometChatGroups()
        )
    );
  }
}

Actions

Actions dictate how a widget functions. They are divided into two types: Predefined and User-defined. You can override either type, allowing you to tailor the behavior of the widget to fit your specific needs.

1. onItemTap

This method proves valuable when users seek to override onItemTap functionality within CometChatGroups, empowering them with greater control and customization options. The onItemTap action doesn’t have a predefined behavior. You can override this action using the following code snippet.

Dart

CometChatGroups(
  onItemTap: (context, group) {
    // TODO("Not yet implemented")
  },
)

2. onBack

Enhance your application’s functionality by leveraging the onBack feature. This capability allows you to customize the behavior associated with navigating back within your app. Utilize the provided code snippet to override default behaviors and tailor the user experience according to your specific requirements.

Dart

CometChatGroups(
  onBack: () {
    // TODO("Not yet implemented")
  },
)

3. onError

You can customize this behavior by using the provided code snippet to override the onError and improve error handling.

Dart

CometChatGroups(
  onError: (e) {
    // TODO("Not yet implemented")
  },
)

4. onItemLongPress

This method becomes invaluable when users seek to override long-click functionality within CometChatGroups, offering them enhanced control and flexibility in their interactions. The onItemLongPress action doesn’t have a predefined behavior. You can override this action using the following code snippet.

Dart

CometChatGroups(
  onItemLongPress: (context, group) {
    // TODO("Not yet implemented")
  },
)

5. onSelection

When the onSelection event is triggered, it furnishes the list of selected groups. This event can be invoked by any button or action within the interface. You have the flexibility to implement custom actions or behaviors based on the selected groups. This action does not come with any predefined behavior. However, you have the flexibility to override this event and tailor it to suit your needs using the following code snippet.

Dart

CometChatGroups(
  selectionMode: SelectionMode.multiple,
  activateSelection: ActivateSelection.onClick,
  onSelection: (groupList) {
    // TODO("Not yet implemented")
  }
)

Filters

Filters allow you to customize the data displayed in a list within a Component. You can filter the list based on your specific criteria, allowing for a more customized. Filters can be applied using RequestBuilders of Chat SDK.

1. GroupsRequestBuilder

The GroupsRequestBuilder enables you to filter and customize the group list based on available parameters in GroupsRequestBuilder. This feature allows you to create more specific and targeted queries when fetching groups. The following are the parameters available in GroupsRequestBuilder

Dart

CometChatGroups(
    groupsRequestBuilder: GroupsRequestBuilder()
        ..limit = 10
)

Property	Description	Code
Joined Only	Flag to include only joined groups. Defaults to `false`.	`joinedOnly: bool`
Limit	Number of results to limit the query.	`limit: int`
Search Keyword	Keyword for searching groups.	`searchKeyword: String`
Tags	Tags for filtering groups.	`tags: List<String>`
With Tags	Flag to include tags in the results. Defaults to `false`.	`withTags: bool`

Events

Events are emitted by a CometChatGroups Widget. By using event you can extend existing functionality. Being global events, they can be applied in Multiple Locations and are capable of being Added or Removed. The list of events emitted by the CometChatGroups widget is as follows.

Events	Description
`ccGroupCreated`	This gets triggered when the logged in user creates a group.
`ccGroupDeleted`	This gets triggered when the logged in user deletes a group.
`ccGroupLeft`	This gets triggered when the logged in user leaves a group.
`ccGroupMemberScopeChanged`	This gets triggered when the logged in user changes the scope of another group member.
`ccGroupMemberBanned`	This gets triggered when the logged in user bans a group member from the group.
`ccGroupMemberKicked`	This gets triggered when the logged in user kicks another group member from the group.
`ccGroupMemberUnbanned`	This gets triggered when the logged in user unbans a user banned from the group.
`ccGroupMemberJoined`	This gets triggered when the logged in user joins a group.
`ccGroupMemberAdded`	This gets triggered when the logged in user adds new members to the group.
`ccOwnershipChanged`	This gets triggered when the logged in user transfers the ownership of their group to some other member.

Dart

your_screen.dart

import 'package:cometchat_chat_uikit/cometchat_chat_uikit.dart';
import 'package:cometchat_sdk/models/action.dart' as cc;
import 'package:flutter/material.dart';

class YourScreen extends StatefulWidget {
  const YourScreen({super.key});

  @override
  State<YourScreen> createState() => _YourScreenState();
}

class _YourScreenState extends State<YourScreen> with CometChatGroupEventListener {

  @override
  void initState() {
    super.initState();
    CometChatGroupEvents.addGroupsListener("listenerId", this); // Add the listener
  }

  @override
  void dispose(){
    super.dispose();
    CometChatGroupEvents.removeGroupsListener("listenerId"); // Remove the listener
  }


  @override
  void ccGroupCreated(Group group) {
    // TODO("Not yet implemented")
  }

  @override
  void ccGroupDeleted(Group group) {
    // TODO("Not yet implemented")
  }

  @override
  void ccGroupLeft(cc.Action message, User leftUser, Group leftGroup) {
    // TODO("Not yet implemented")
  }

  @override
  void ccGroupMemberScopeChanged(cc.Action message, User updatedUser, String scopeChangedTo, String scopeChangedFrom, Group group) {
    // TODO("Not yet implemented")
  }

  @override
  void ccGroupMemberBanned(cc.Action message, User bannedUser, User bannedBy, Group bannedFrom) {
    // TODO("Not yet implemented")
  }

  @override
  void ccGroupMemberKicked(cc.Action message, User kickedUser, User kickedBy, Group kickedFrom) {
    // TODO("Not yet implemented")
  }

  @override
  void ccGroupMemberUnbanned(cc.Action message, User unbannedUser, User unbannedBy, Group unbannedFrom) {
    // TODO("Not yet implemented")
  }

  @override
  void ccGroupMemberJoined(User joinedUser, Group joinedGroup) {
    // TODO("Not yet implemented")
  }

  @override
  void ccGroupMemberAdded(List<cc.Action> messages, List<User> usersAdded, Group groupAddedIn, User addedBy) {
    // TODO("Not yet implemented")
  }

  @override
  void ccOwnershipChanged(Group group, GroupMember newOwner) {
    // TODO("Not yet implemented")
  }

  @override
  Widget build(BuildContext context) {
    return const Placeholder();
  }

}

Customization

To fit your app’s design requirements, you can customize the appearance of the groups widget. We provide exposed methods that allow you to modify the experience and behavior according to your specific needs.

Style

Using Style you can customize the look and feel of the widget in your app, These parameters typically control elements such as the color, size, shape, and fonts used within the widget.

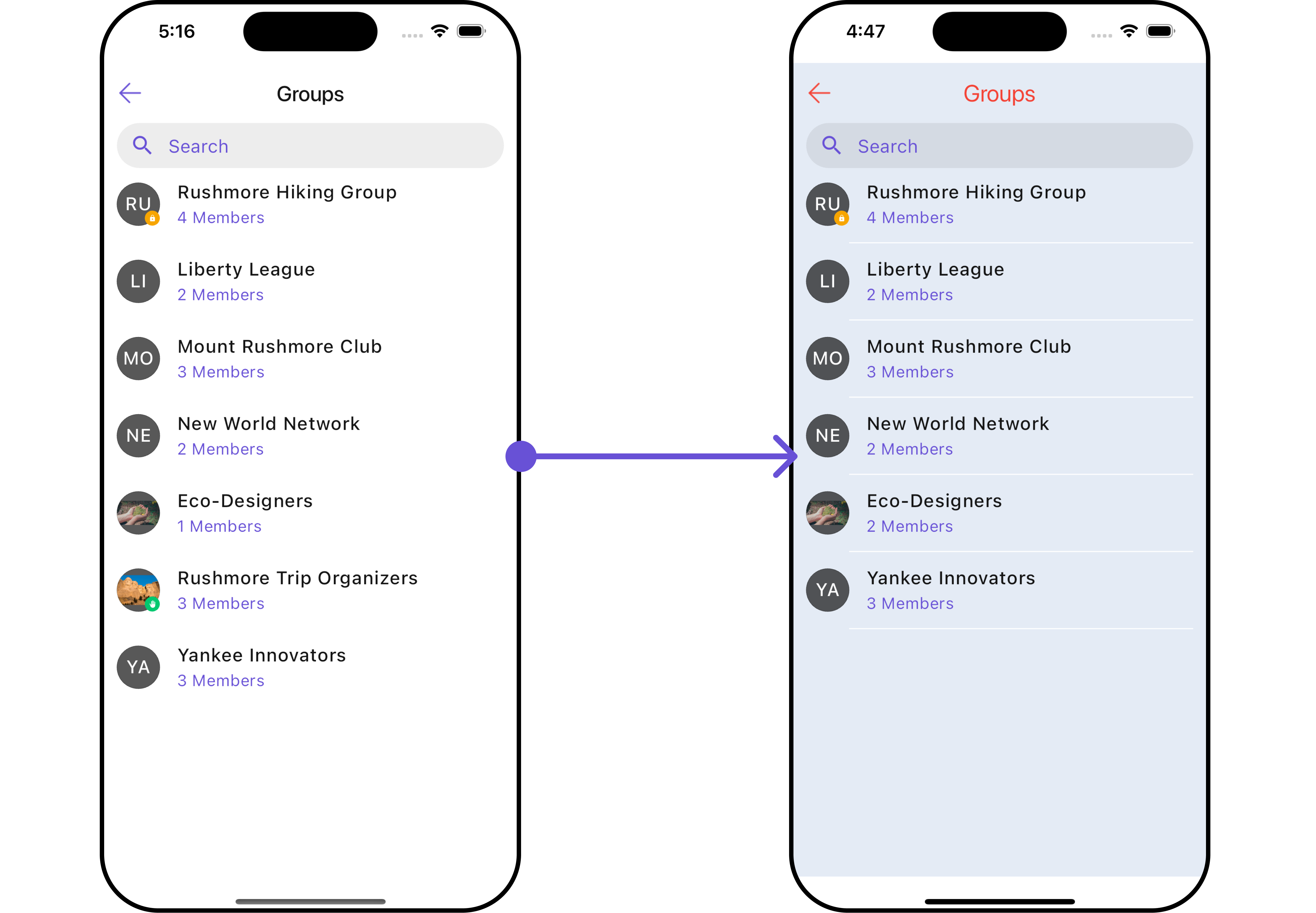

1. Groups Style

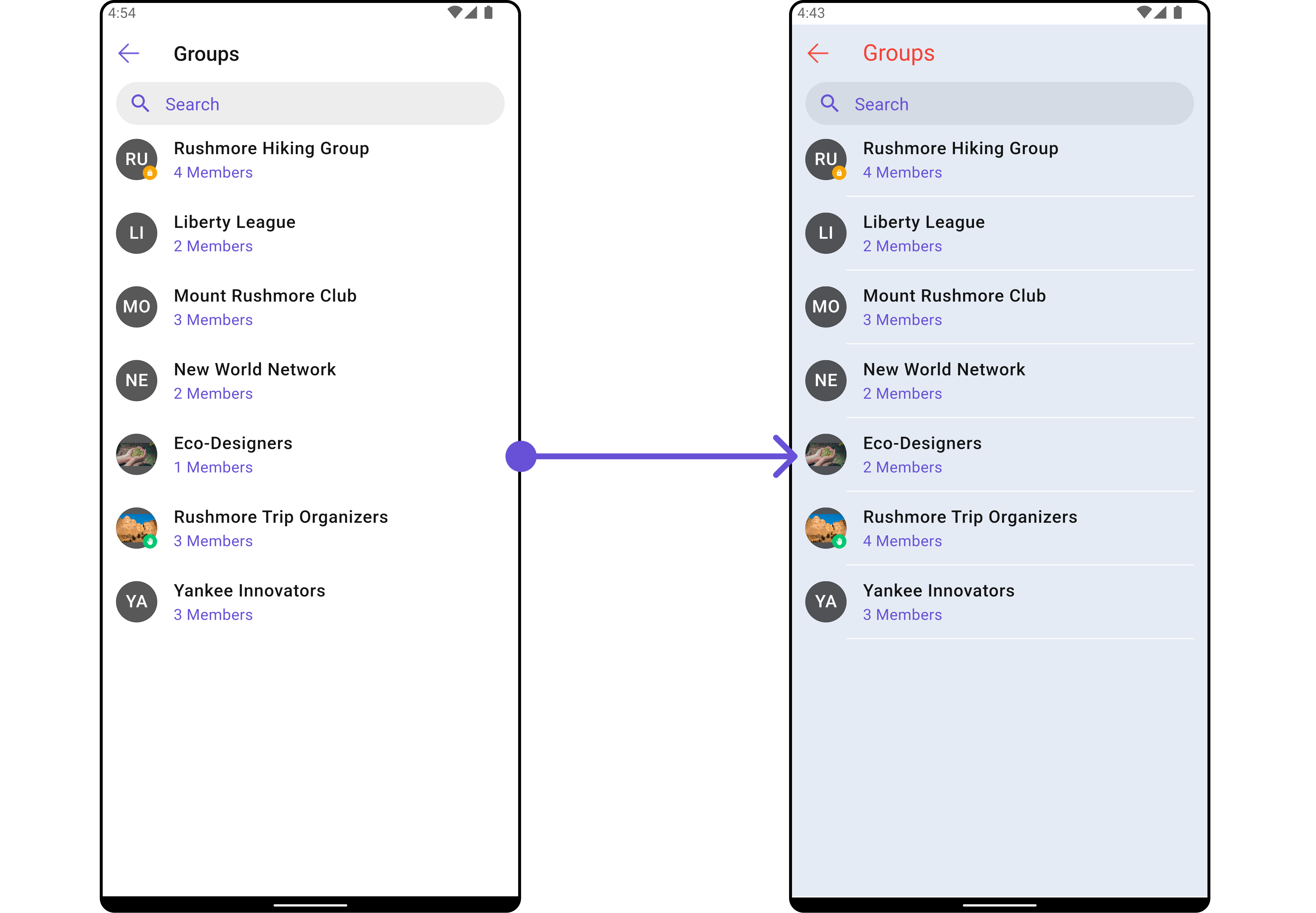

Enhance your CometChatGroups Widget by setting the GroupsStyle to customize its appearance.

Dart

CometChatGroups(
  groupsStyle: GroupsStyle(
      background: Color(0xFFE4EBF5),
      titleStyle: TextStyle(color: Colors.red),
      backIconTint: Colors.red
  ),
)

Android
iOS

List of properties exposed by GroupsStyle

Property	Description	Code
Back Icon Tint	Provides color for the back icon	`backIconTint: Color?`
Empty Text Style	Provides styling for text to indicate group list is empty	`emptyTextStyle: TextStyle?`
Error Text Style	Provides styling for text to indicate some error has occurred	`errorTextStyle: TextStyle?`
Loading Icon Tint	Provides color to loading icon	`loadingIconTint: Color?`
Password Group Icon Background	Provides color to the icon for password protected group	`passwordGroupIconBackground: Color?`
Private Group Icon Background	Provides color to the icon for private group	`privateGroupIconBackground: Color?`
Search Background	Provides color for the search box	`searchBackground: Color?`
Search Border Color	Provides color for the border around the search box	`searchBorderColor: Color?`
Search Border Radius	Provides radius for the border around the search box	`searchBorderRadius: double?`
Search Border Width	Provides width to the border around the search box	`searchBorderWidth: double?`
Search Icon Tint	Provides color for the search icon	`searchIconTint: Color?`
Search Placeholder Style	Provides styling for the hint text inside the search box	`searchPlaceholderStyle: TextStyle?`
Search Text Style	Provides styling for text inside the search box	`searchTextStyle: TextStyle?`
Selection Icon Tint	Set selection icon color	`selectionIconTint: Color?`
Submit Icon Tint	Set submit icon tint	`submitIconTint: Color?`
Subtitle Text Style	Provides styling to the text in the subtitle	`subtitleTextStyle: TextStyle?`
Title Style	Provides styling for title text	`titleStyle: TextStyle?`

2. Avatar Style

To apply customized styles to the Avatar widget in the CometChatGroups widget, you can use the following code snippet. For further insights on Avatar Styles refer

Dart

CometChatGroups(
  avatarStyle: AvatarStyle(
      border: Border.all(width: 5),
      borderRadius: 20,
      background: Colors.red
  ),
)

3. StatusIndicator Style

To apply customized styles to the Status Indicator widget in the CometChatGroups widget, You can use the following code snippet. For further insights on Status Indicator Styles refer

Dart

CometChatGroups(
  statusIndicatorStyle: StatusIndicatorStyle(
      borderRadius: 10,
      gradient: LinearGradient(colors: [Colors.red, Colors.orange], begin: Alignment.topLeft, end: Alignment.bottomRight)
  ),
)

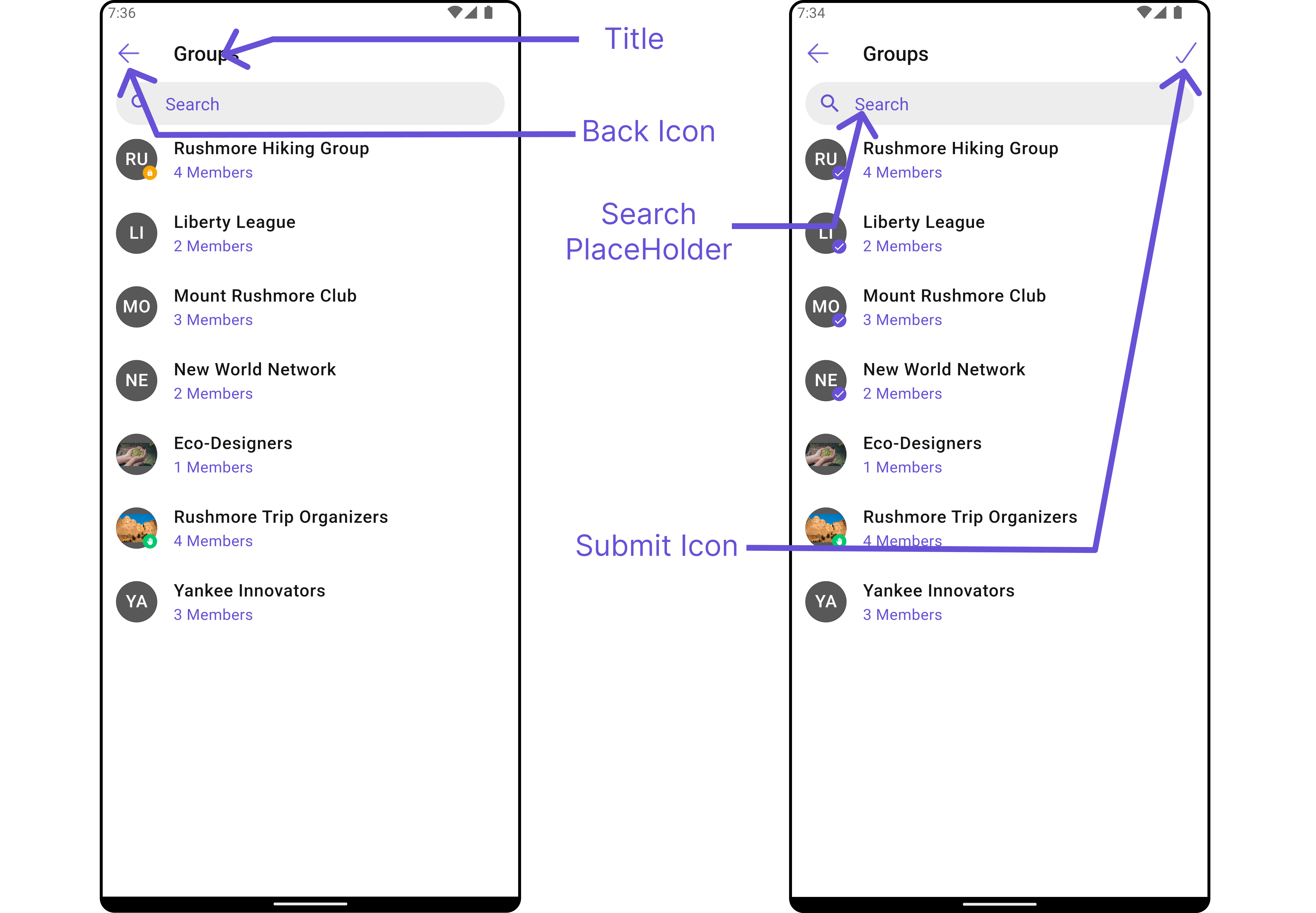

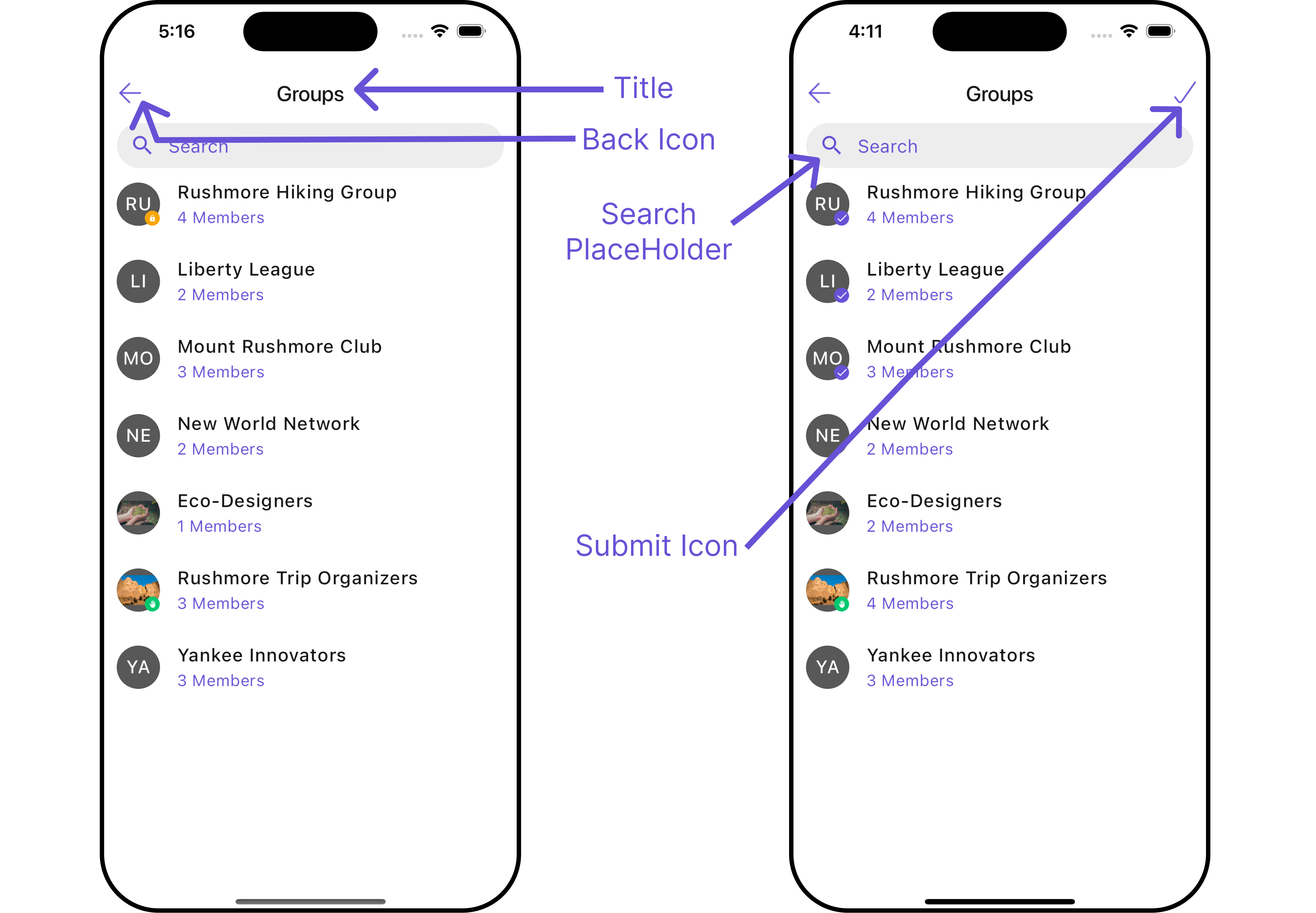

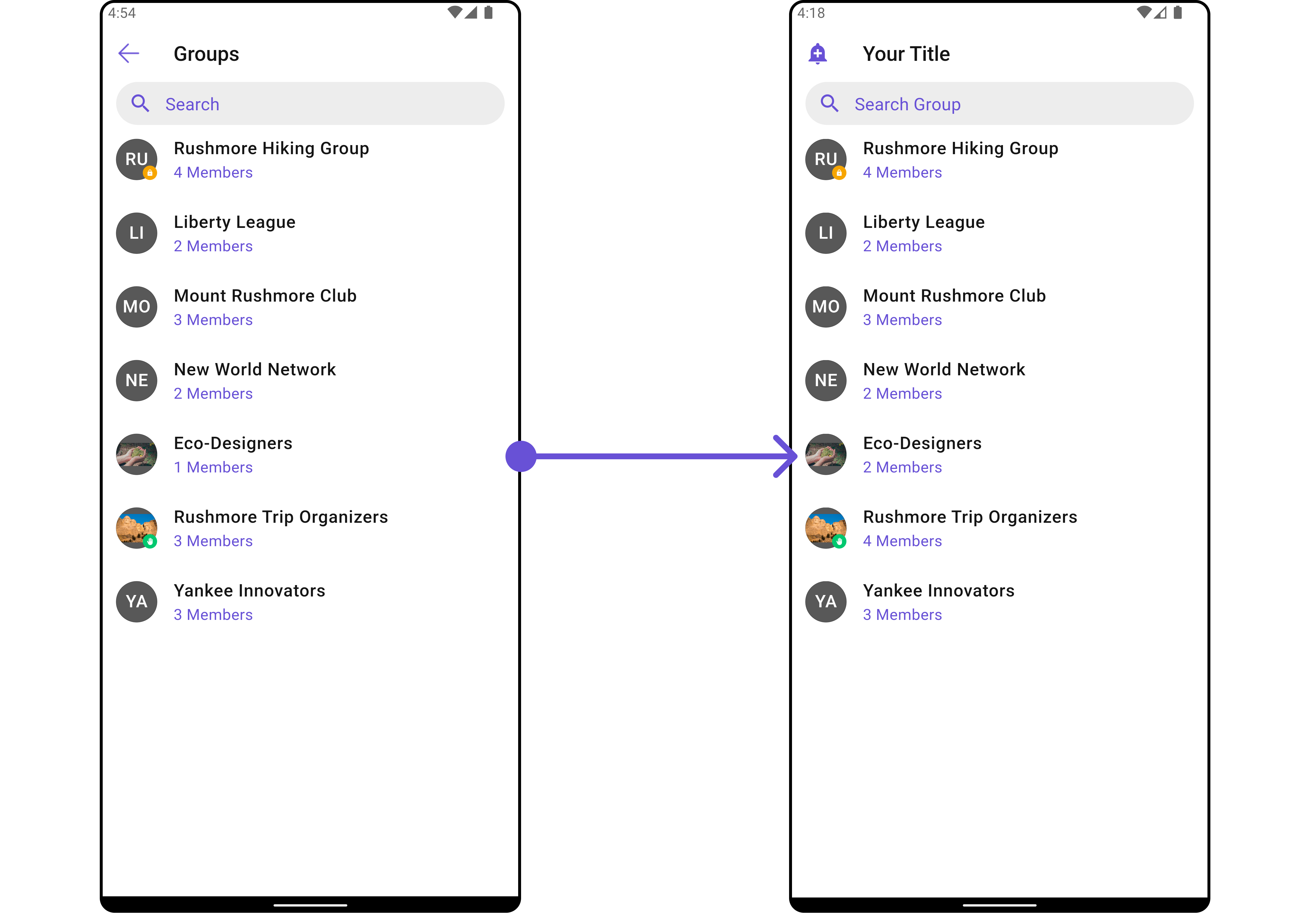

Functionality

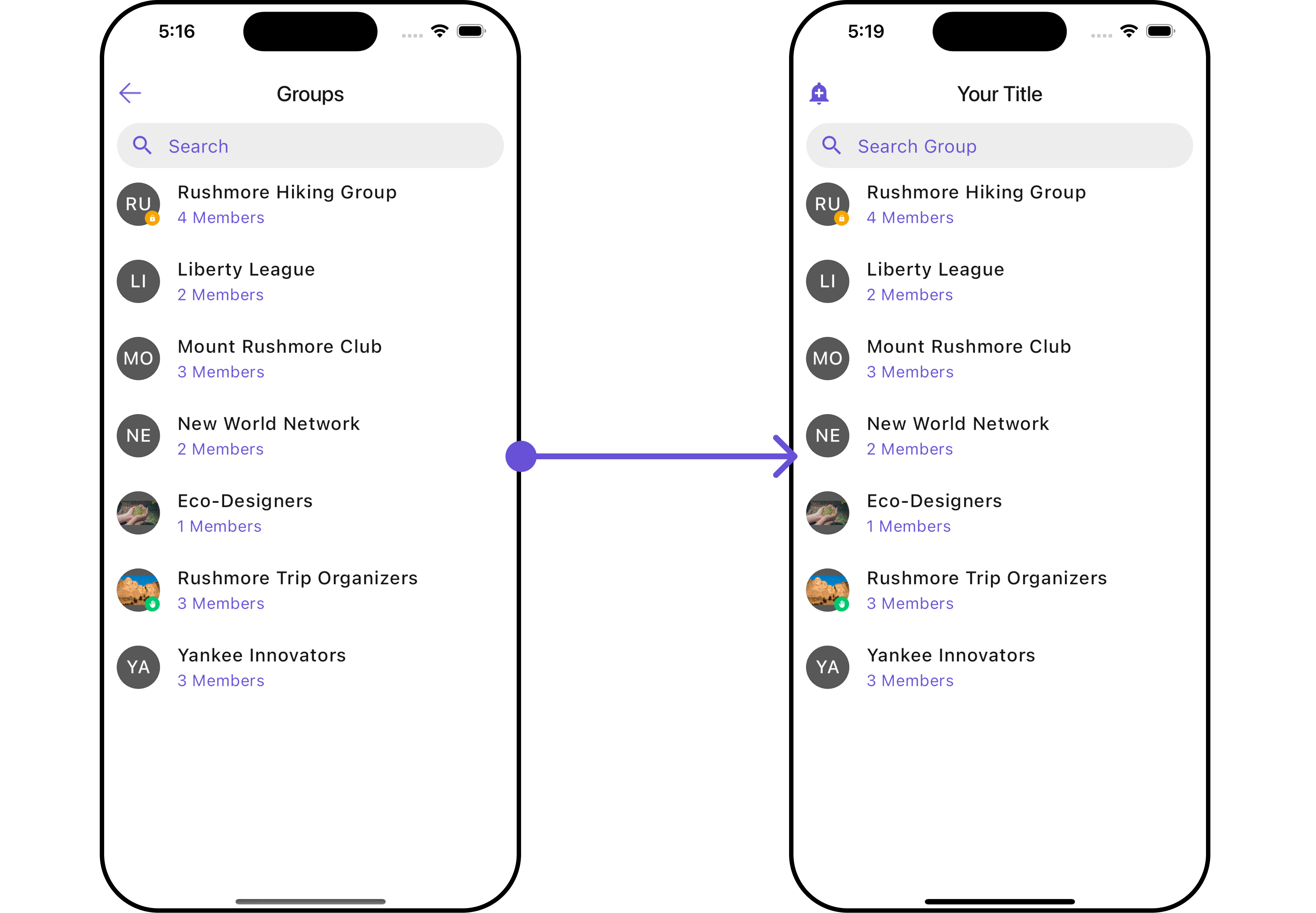

These are a set of small functional customizations that allow you to fine-tune the overall experience of the widget. With these, you can change text, set custom icons, and toggle the visibility of UI elements.

Android
iOS

Dart

CometChatGroups(
  title: "Your Title",
  backButton: Icon(Icons.add_alert, color: Color(0xFF6851D6)),
  searchPlaceholder: "Search Group",
)

Android
iOS

List of properties exposed by CometChatGroups

Property	Description	Code
Activate Selection	Lets the widget know if groups are allowed to be selected	`activateSelection: ActivateSelection?`
Back Button	Back button	`backButton: Widget?`
Controller	Sets controller for the list	`controller: ScrollController?`
Controller Tag	Group tag to create from, if this is passed it’s parent responsibility to close this	`controllerTag: String?`
Empty State Text	Text to be displayed when the list is empty	`emptyStateText: String?`
Error State Text	Text to be displayed when error occurs	`errorStateText: String?`
Hide Appbar	Toggle visibility for app bar	`hideAppbar: bool?`
Hide Error	Toggle visibility of error dialog	`hideError: bool?`
Hide Search	Switch on/off search input	`hideSearch: bool`
Hide Separator		`hideSeparator: bool`
Password Group Icon	Sets icon in status indicator for password group	`passwordGroupIcon: Widget?`
Private Group Icon	Sets icon in status indicator for private group	`privateGroupIcon: Widget?`
Search Box Icon	Search icon	`searchBoxIcon: Widget?`
Search Placeholder	Placeholder text of search input	`searchPlaceholder: String?`
Selection Icon	Change selection icon	`selectionIcon: Widget?`
Selection Mode	Specifies mode groups module is opening in	`selectionMode: SelectionMode?`
Submit Icon	Override the default submit icon	`submitIcon: Widget?`
Theme	Can pass custom theme	`theme: CometChatTheme?`
Title	Sets title for the list	`title: String?`

Advance

For advanced-level customization, you can set custom views to the widget. This lets you tailor each aspect of the widget to fit your exact needs and application aesthetics. You can create and define your own widget and then incorporate those into the widget.

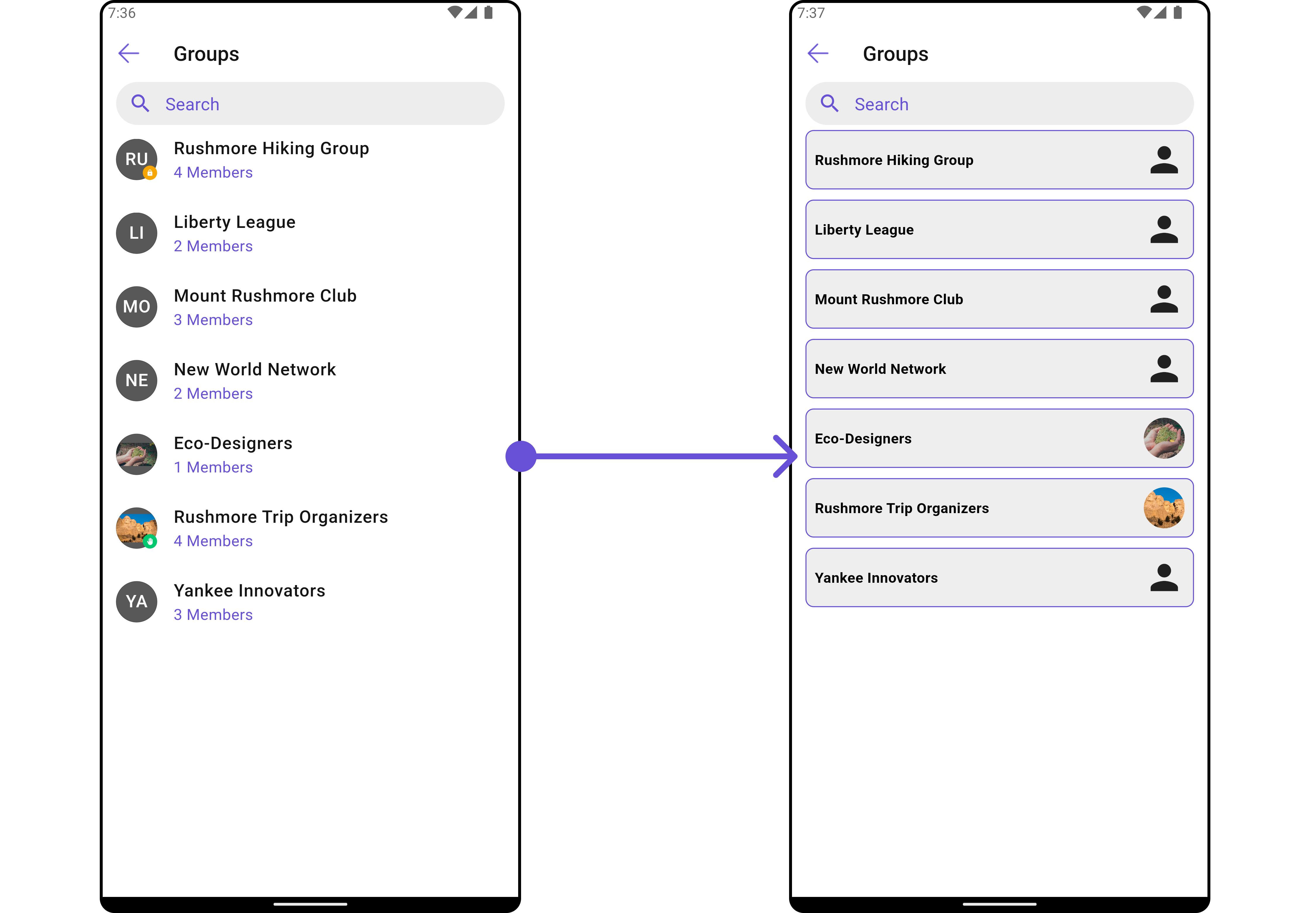

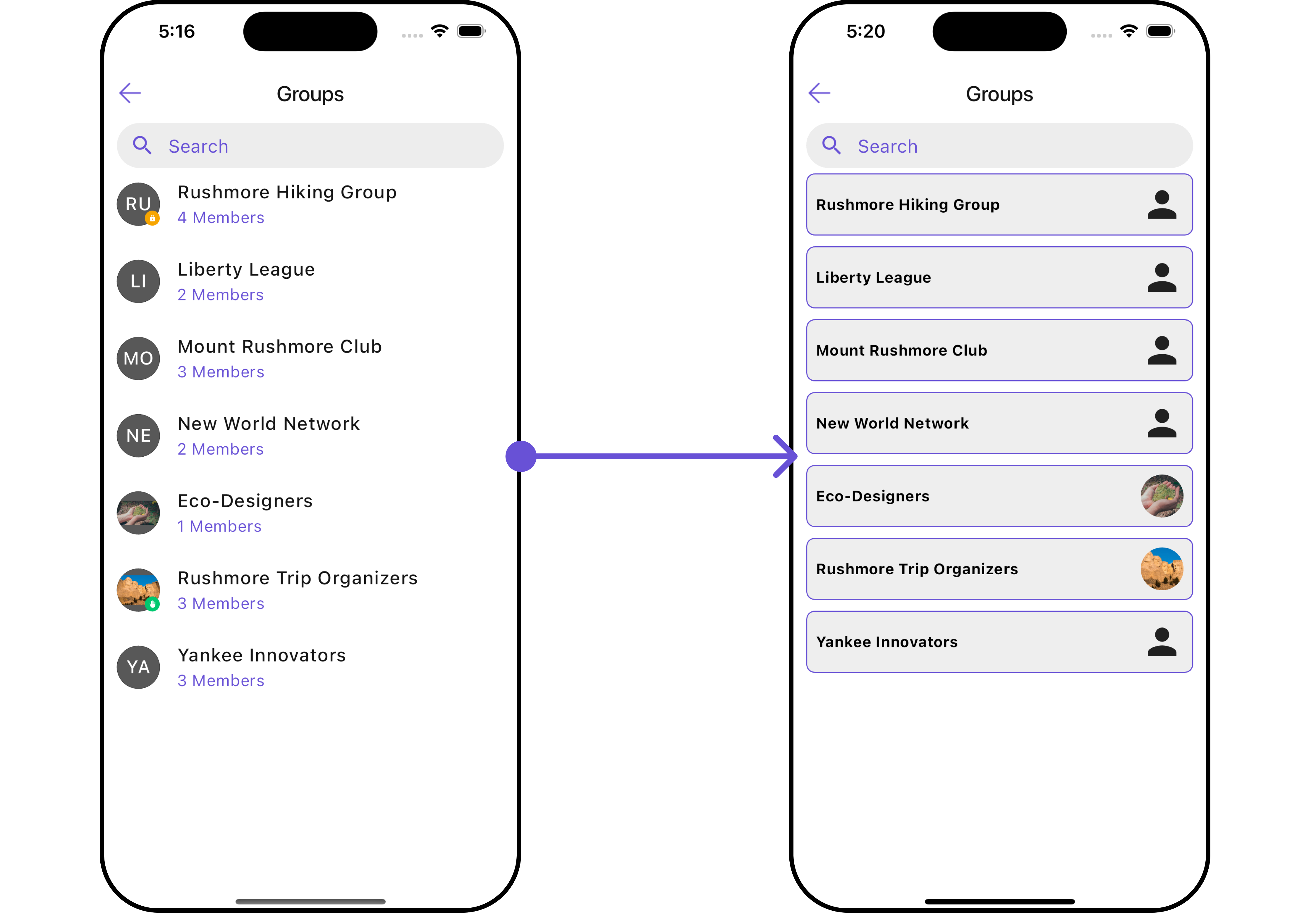

ListItemView

With this function, you can assign a custom ListItem to the CometChatGroups Widget.

Dart

CometChatGroups(
  listItemView: (group) {
    return Placeholder(); // Replace this placeholder with your custom widget.
  },
)

Example Here is the complete example for reference:

Dart

custom_list_item.dart

import 'package:flutter/material.dart';
import 'package:intl/intl.dart';
import '../helper/utils/custom_colors.dart';

class CustomListItems extends StatelessWidget {
  final String name;
  final DateTime? lastMessageTime;
  final String? avatarUrl;

  const CustomListItems({
    super.key,
    required this.name,
    this.lastMessageTime,
    this.avatarUrl,
  });

  String formatDateTime(DateTime dateTime) {
    final now = DateTime.now();
    final difference = now.difference(dateTime);

    if (difference.inDays == 0) {
      return DateFormat('HH:mm').format(dateTime);
    } else if (difference.inDays == 1) {
      return 'Yesterday';
    } else {
      return DateFormat('yyyy-MM-dd').format(dateTime);
    }
  }

  @override
  Widget build(BuildContext context) {
    return Container(
      margin: const EdgeInsets.only(top: 5, bottom: 5),
      padding: const EdgeInsets.all(8.0),
      decoration: BoxDecoration(
        border: Border.all(color: Color(0xFF6851D6), width: 1), // Example border color
        borderRadius: BorderRadius.circular(8.0),
        color: Color(0xFFEEEEEE)
      ),
      child: Row(
        crossAxisAlignment: CrossAxisAlignment.center,
        children: [
          Expanded(
            child: Column(
              crossAxisAlignment: CrossAxisAlignment.start,
              mainAxisAlignment: MainAxisAlignment.center,
              children: [
                Text(
                  name,
                  style: const TextStyle(
                    fontWeight: FontWeight.bold,
                  ),
                ),
                lastMessageTime == null ? Container() : Text(formatDateTime(lastMessageTime!)),
              ],
            ),
          ),
          const SizedBox(width: 8.0),
          if (avatarUrl != null)
            ClipOval(
              child: Image.network(
                avatarUrl!,
                width: 40.0,
                height: 40.0,
                fit: BoxFit.cover,
                errorBuilder: (context, error, stackTrace) {
                  return const Icon(
                    Icons.person,
                    size: 40.0,
                  );
                },
              ),
            )
          else
            const Icon(
              Icons.person,
              size: 40.0,
            ),
        ],
      ),
    );
  }
}

Dart

main.dart

@override
Widget build(BuildContext context) {
  return Scaffold(
      body: SafeArea(
          child:
          CometChatGroups(
            listItemView: (group) {
              return CustomListItems(
                name: group.name,
                avatarUrl: group.icon,
              );
            },
          )
      )
  );
}

Android
iOS

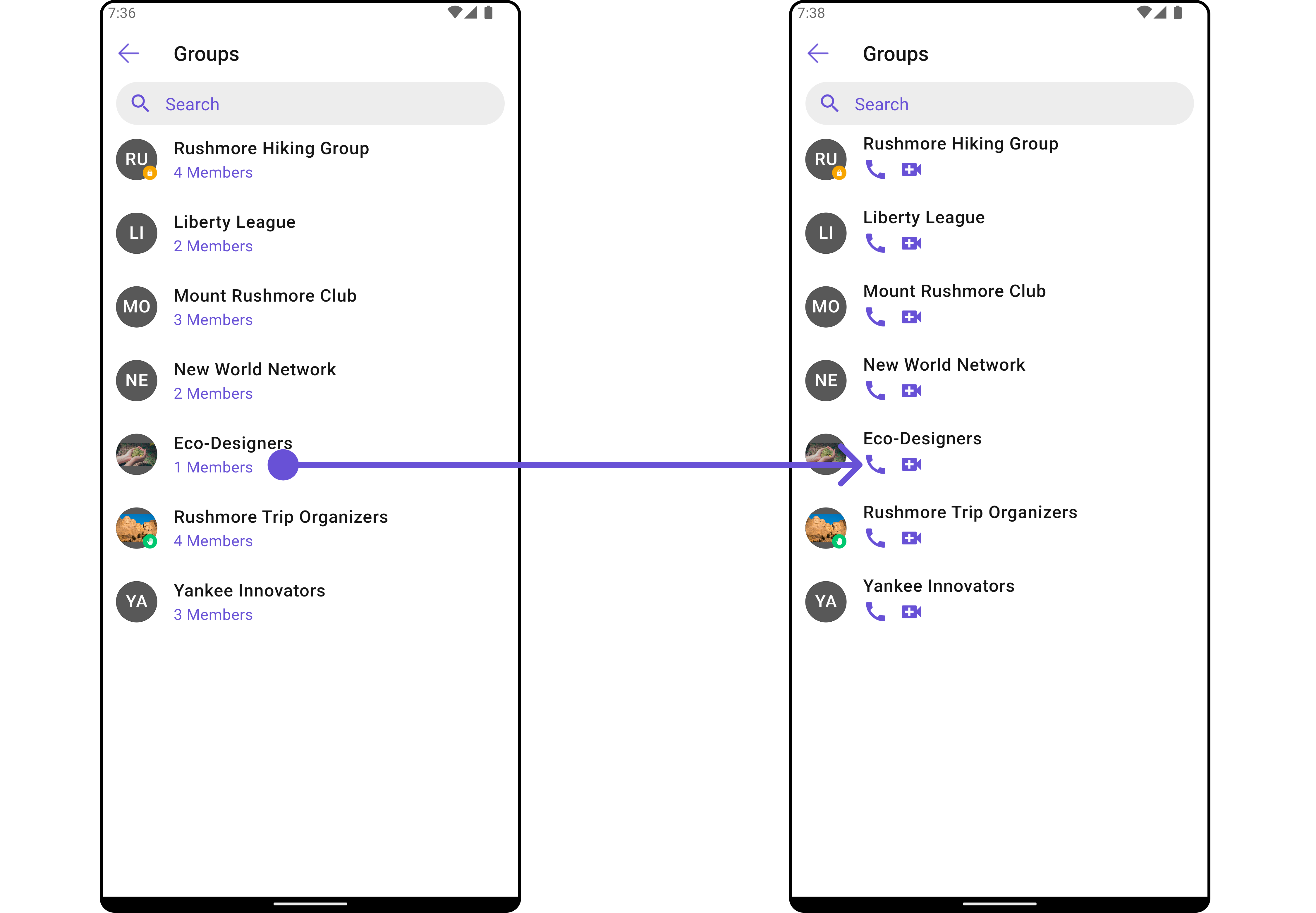

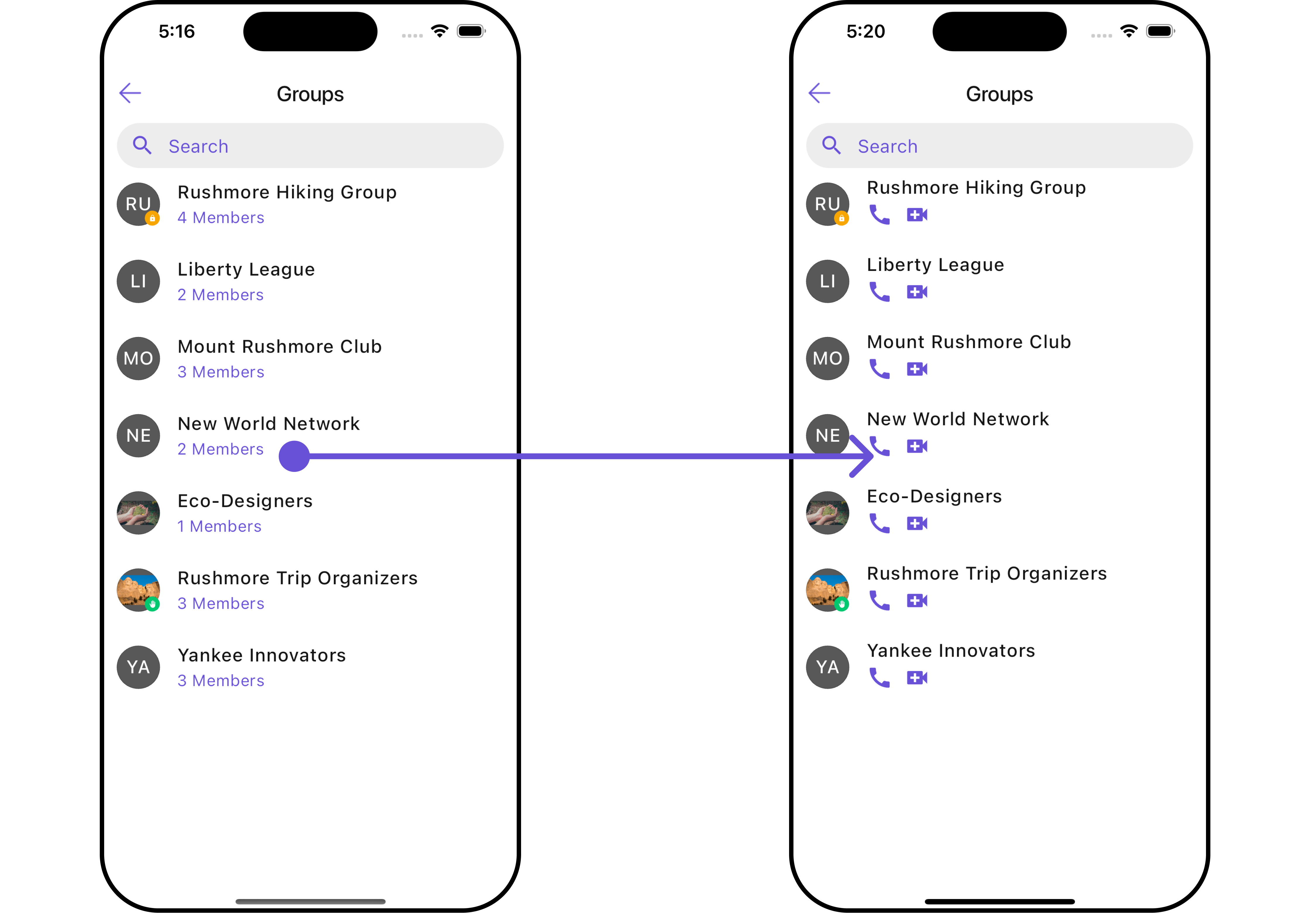

SubtitleView

You can customize the subtitle view for each item to meet your specific preferences and needs.

Dart

CometChatGroups(
  subtitleView: (context, conversation) {
    return const Row(
      children: [
        Icon(Icons.call, color: Color(0xFF6851D6), size: 25,),
        SizedBox(width: 10),
        Icon(Icons.video_call, color: Color(0xFF6851D6), size: 25,),
      ],
    );
  },
)

Android
iOS

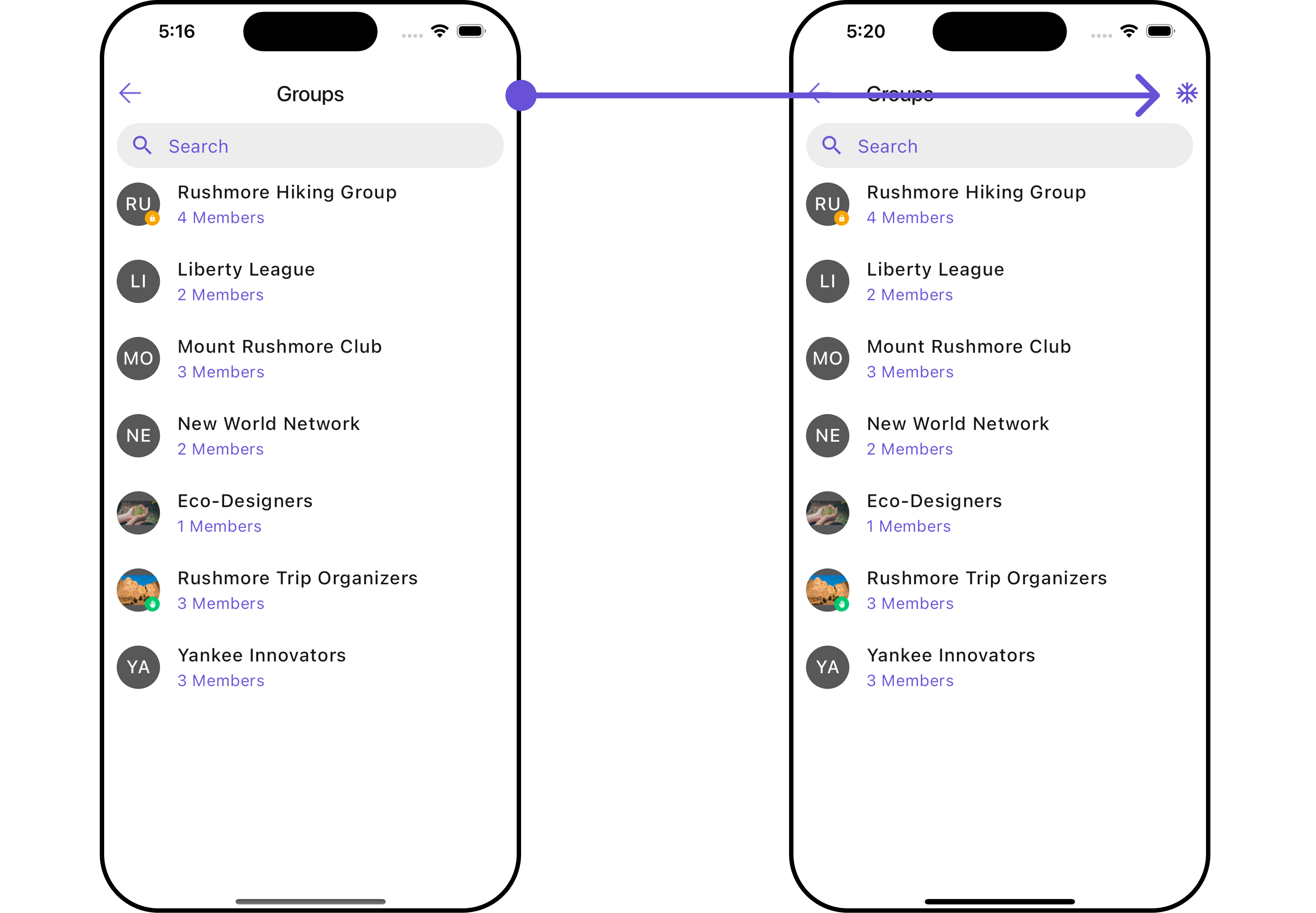

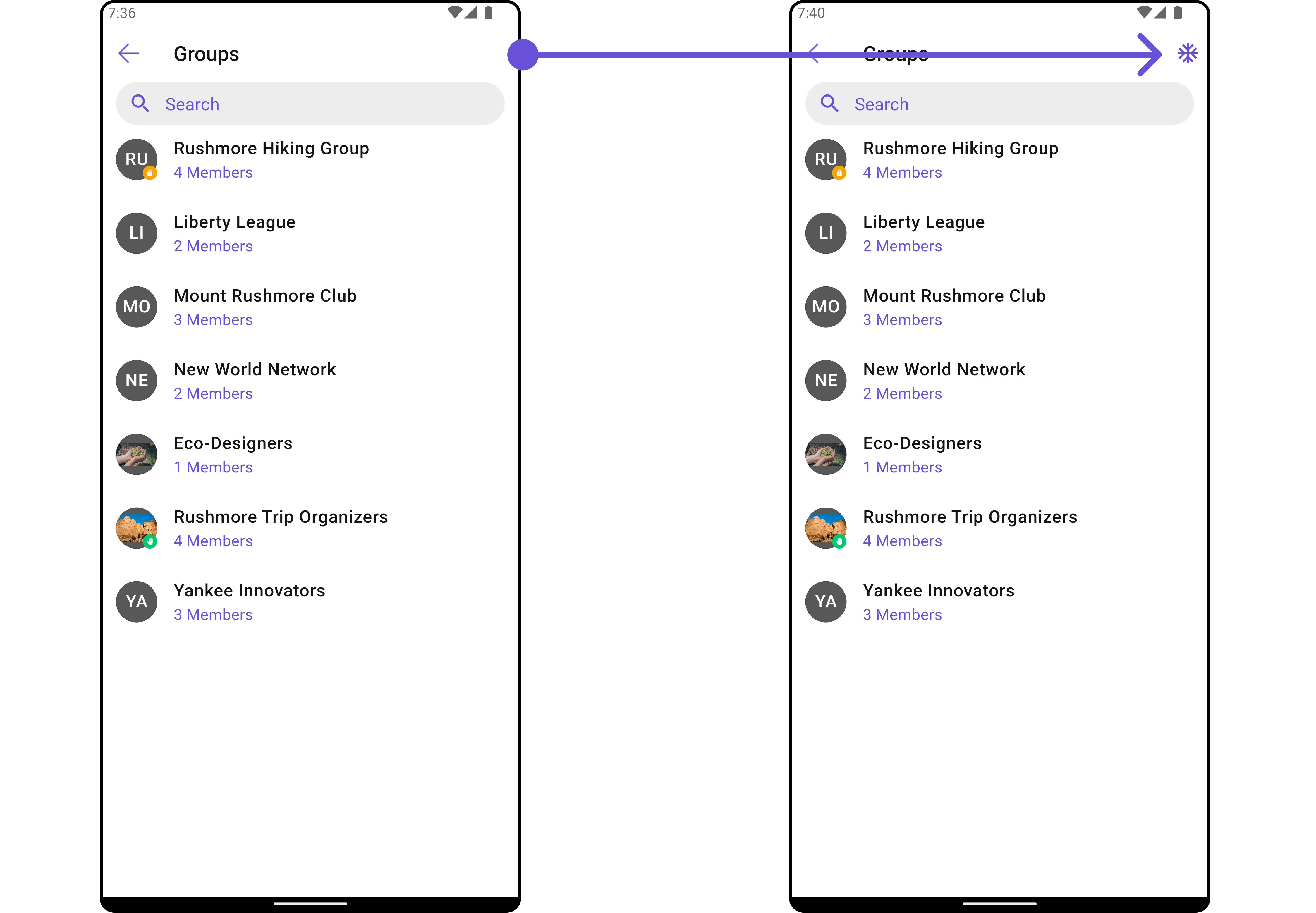

AppBarOptions

You can set the Custom appBarOptions to the CometChatGroups widget.

Dart

CometChatGroups(
  appBarOptions: (context) {
    return [
      InkWell(
        onTap: () {
          // TODO("Not yet implemented")
        },
        child: const Icon(Icons.ac_unit, color: Color(0xFF6851D6)),
      ),
      const SizedBox(width: 10)
    ];
  },
)

Android
iOS

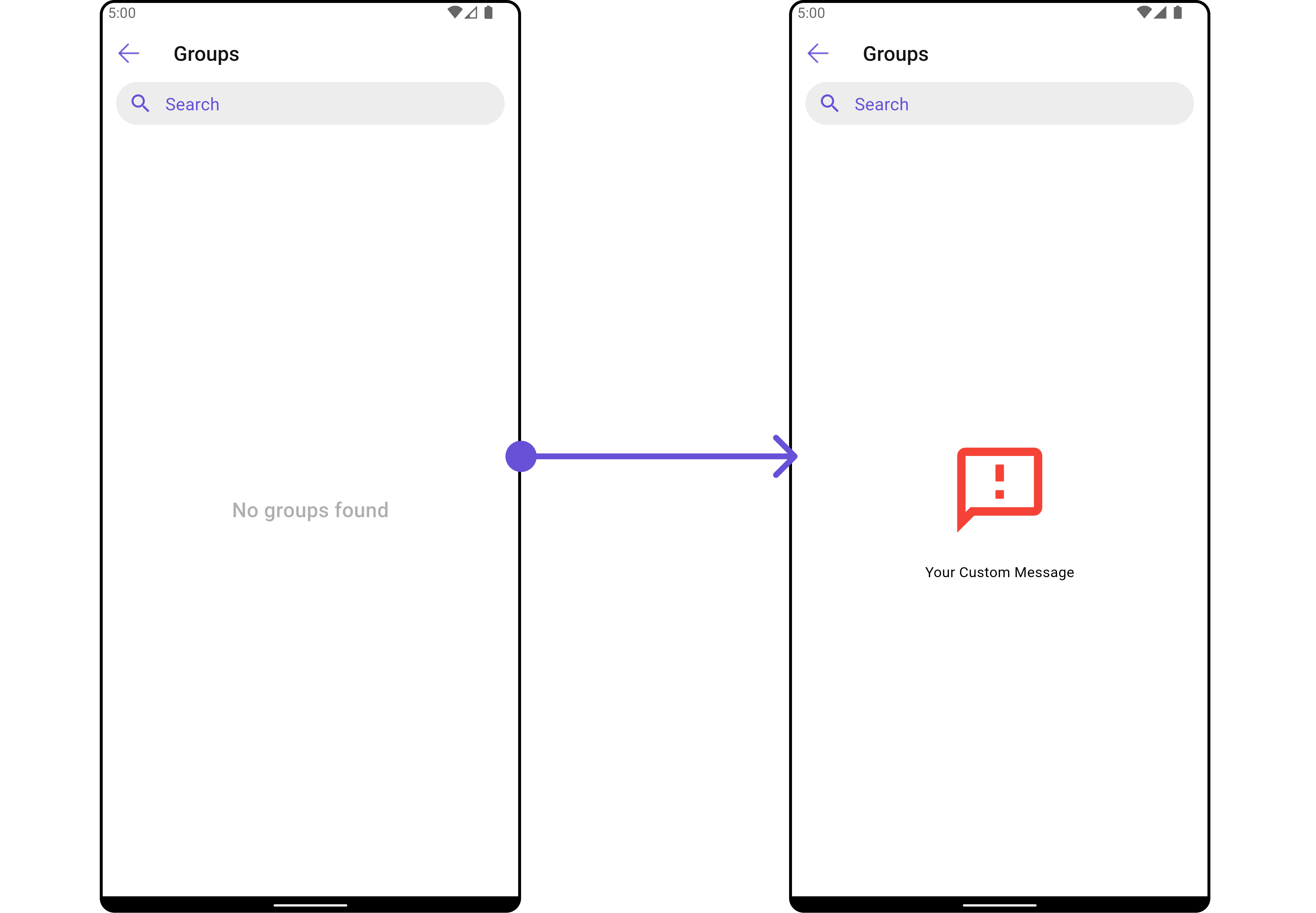

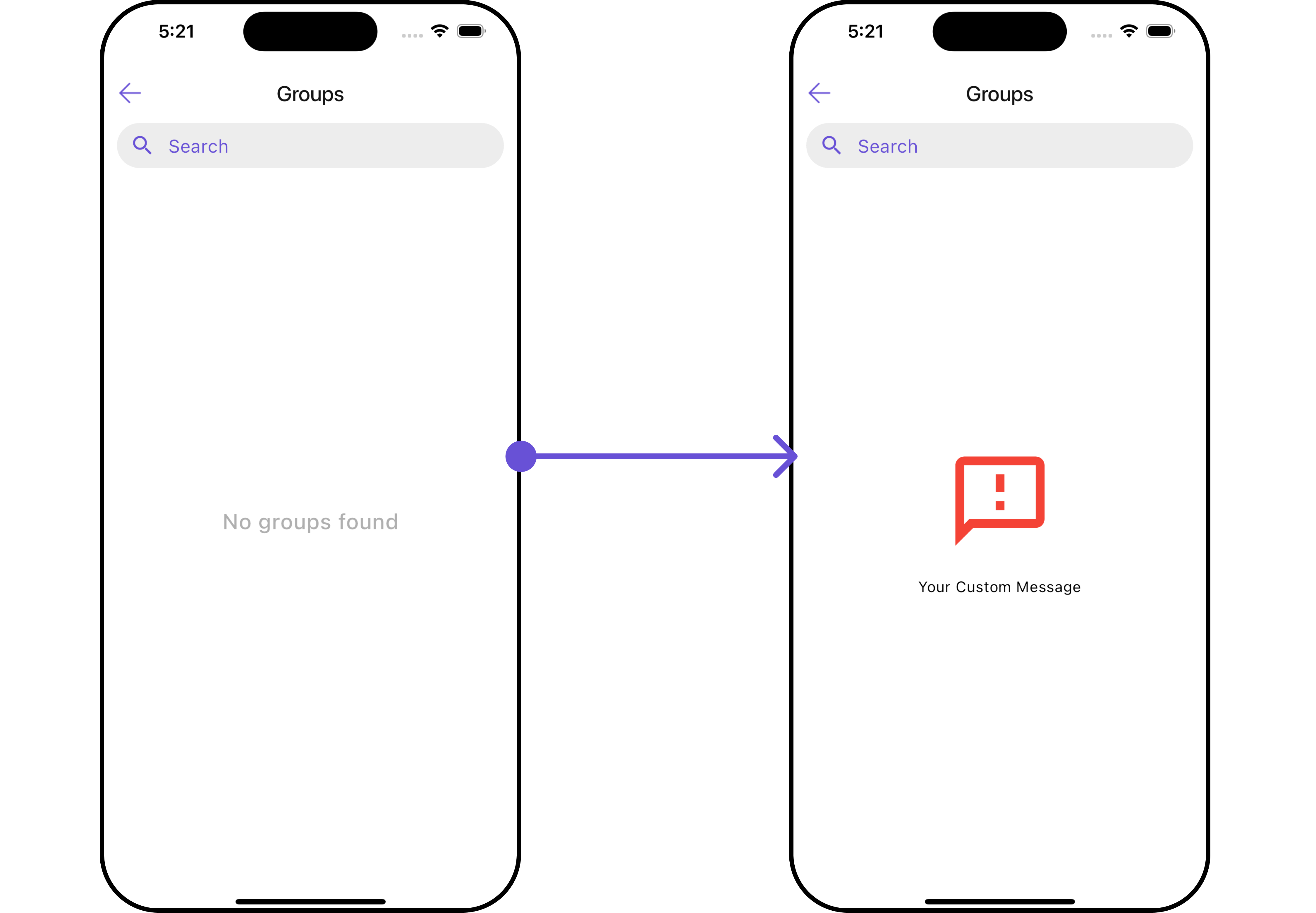

EmptyStateView

You can set a custom EmptyStateView using emptyStateView to match the empty UI of your app.

Dart

CometChatGroups(
  emptyStateView: (context) {
    return const Column(
      crossAxisAlignment: CrossAxisAlignment.center,
      mainAxisAlignment: MainAxisAlignment.center,
      children: [
        Spacer(),
        Icon(Icons.error_outline, color: Colors.red, size: 100,),
        SizedBox(height: 20,),
        Text("Your Custom Error Message"),
        Spacer(),
      ],
    );
  },
)

Android
iOS

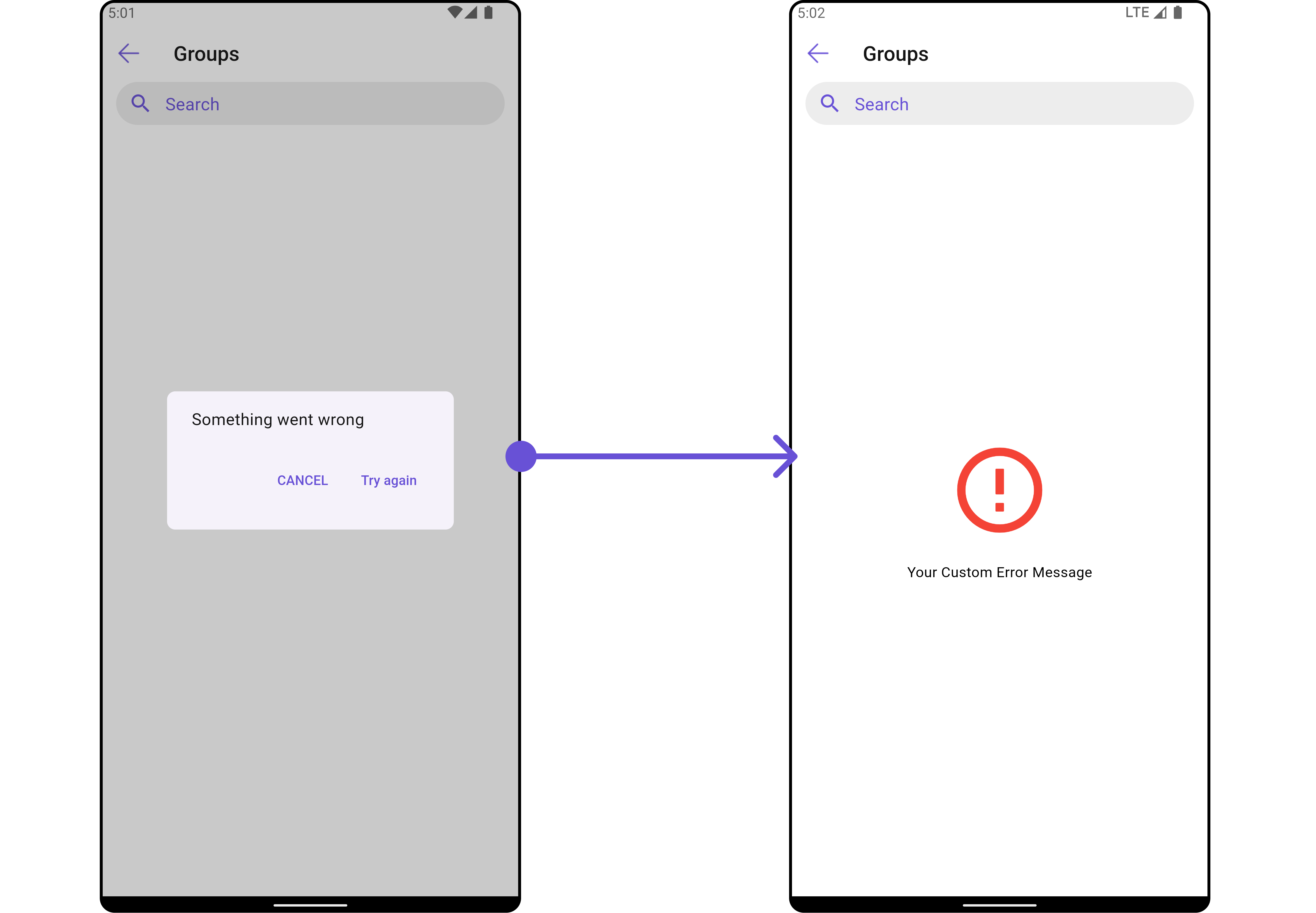

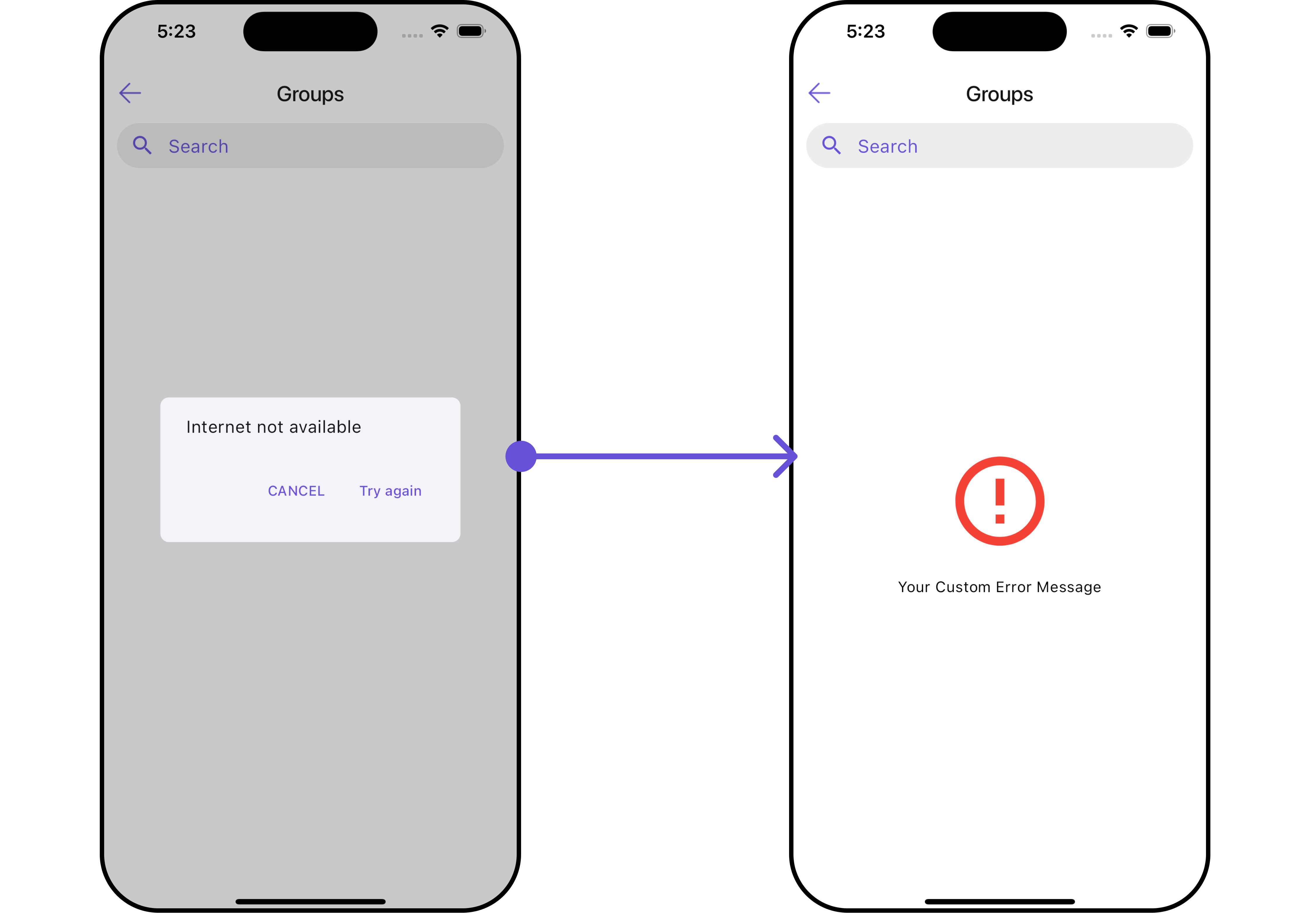

ErrorStateView

You can set a custom ErrorStateView using errorStateView to match the error UI of your app.

Dart

CometChatGroups(
  errorStateView: (context) {
    return SizedBox(
      width: MediaQuery.of(context).size.width,
      child: const Column(
        crossAxisAlignment: CrossAxisAlignment.center,
        mainAxisAlignment: MainAxisAlignment.center,
        children: [
          Spacer(),
          Icon(Icons.error_outline, color: Colors.red, size: 100,),
          SizedBox(height: 20,),
          Text("Your Custom Error Message"),
          Spacer(),
        ],
      ),
    );
  },
)

Android
iOS

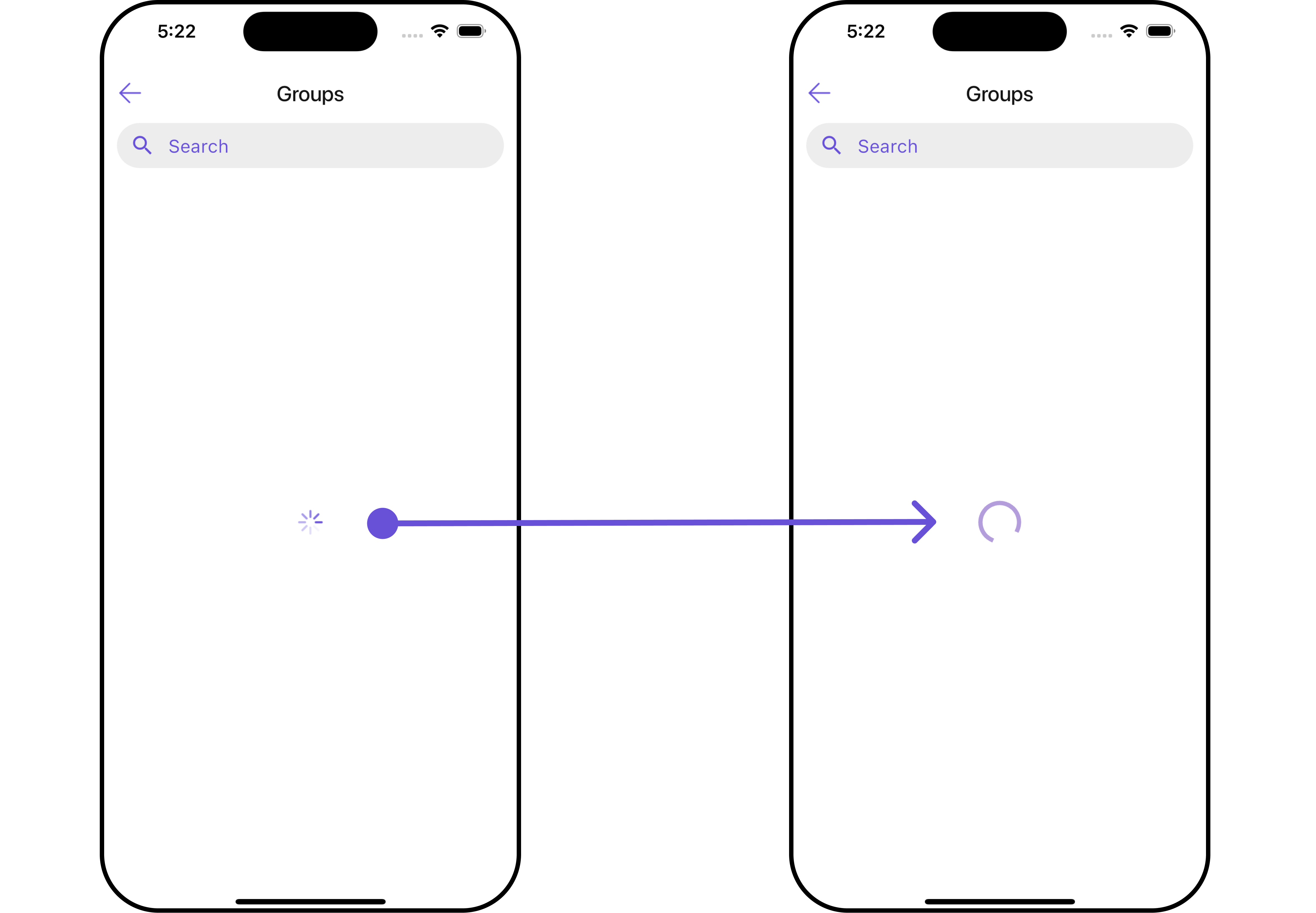

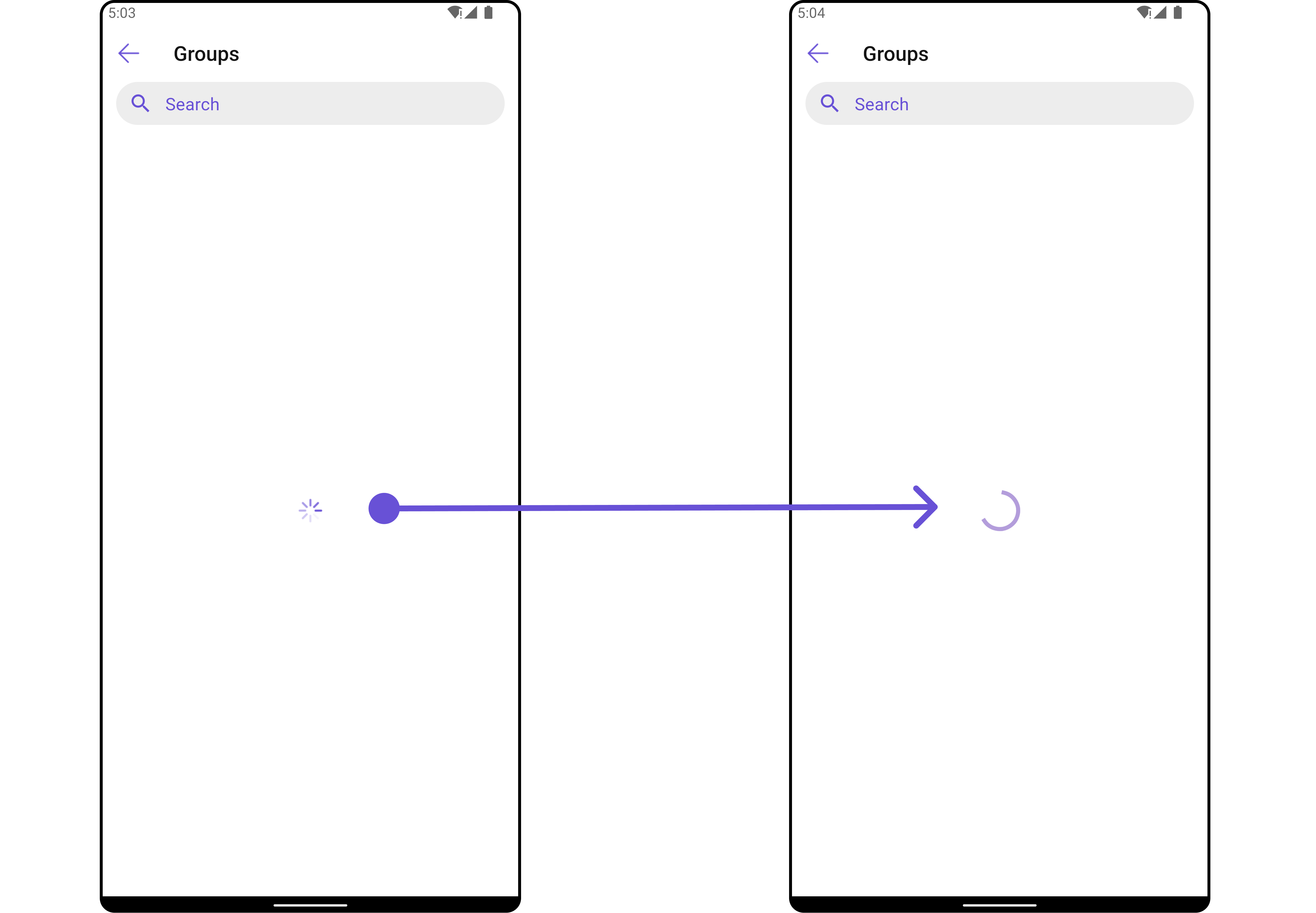

LoadingStateView

You can set a custom LoadingStateView using loadingStateView to match the loading UI of your app.

Dart

CometChatGroups(
  errorStateView: (context) {
    return SizedBox(
      width: MediaQuery.of(context).size.width,
      child: const Column(
        crossAxisAlignment: CrossAxisAlignment.center,
        mainAxisAlignment: MainAxisAlignment.center,
        children: [
          Spacer(),
          Icon(Icons.error_outline, color: Colors.red, size: 100,),
          SizedBox(height: 20,),
          Text("Your Custom Error Message"),
          Spacer(),
        ],
      ),
    );
  },
)

Android
iOS

​Overview

​Usage

​Integration

1. Using Navigator to Launch CometChatGroups

2. Embedding CometChatGroups as a Widget in the build Method

​Actions

1. onItemTap

2. onBack

3. onError

4. onItemLongPress

5. onSelection

​Filters

1. GroupsRequestBuilder

​Events

​Customization

​Style
