UI Components are building blocks of the UI Kit. UI Components are a set of custom classes specially designed to build a rich chat app. There are different UI Components available in the UI Kit Library.

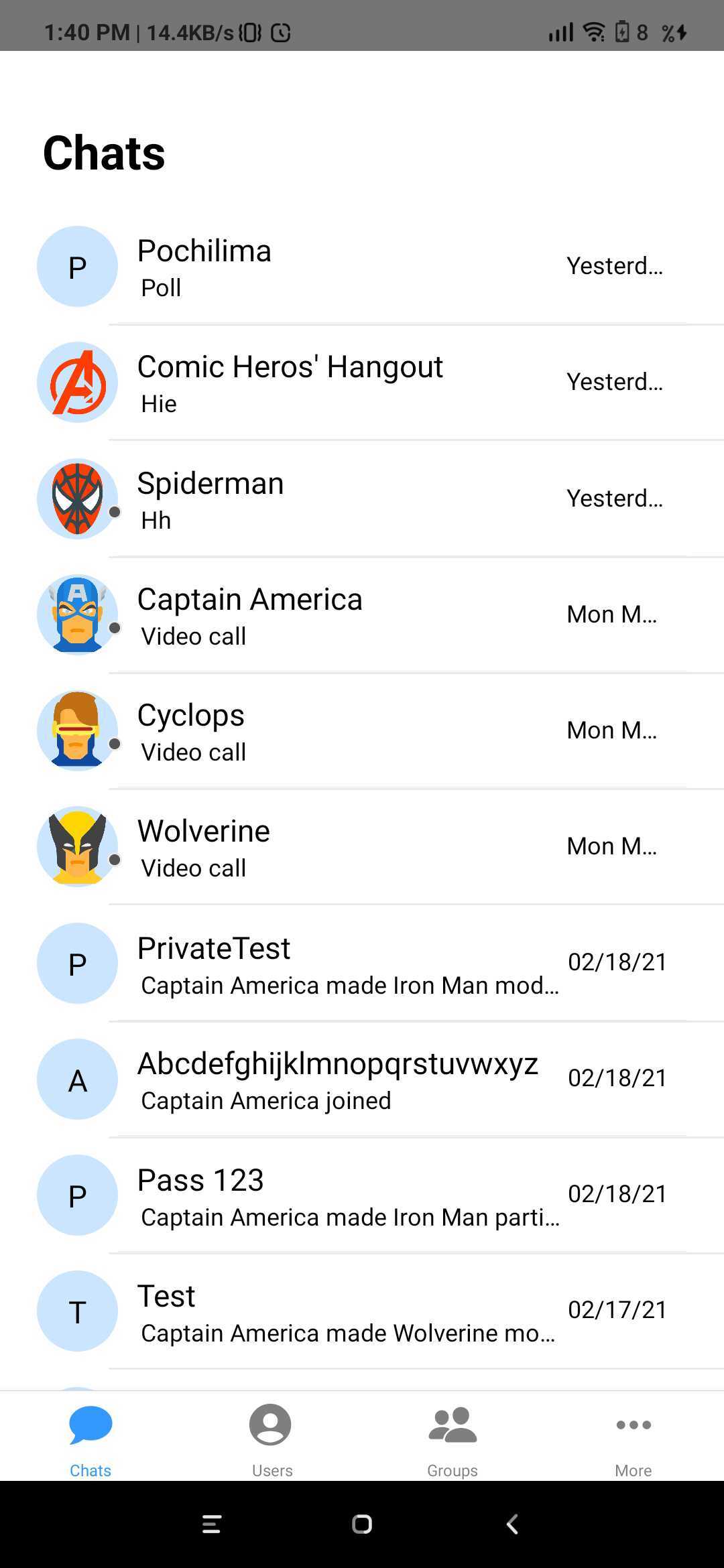

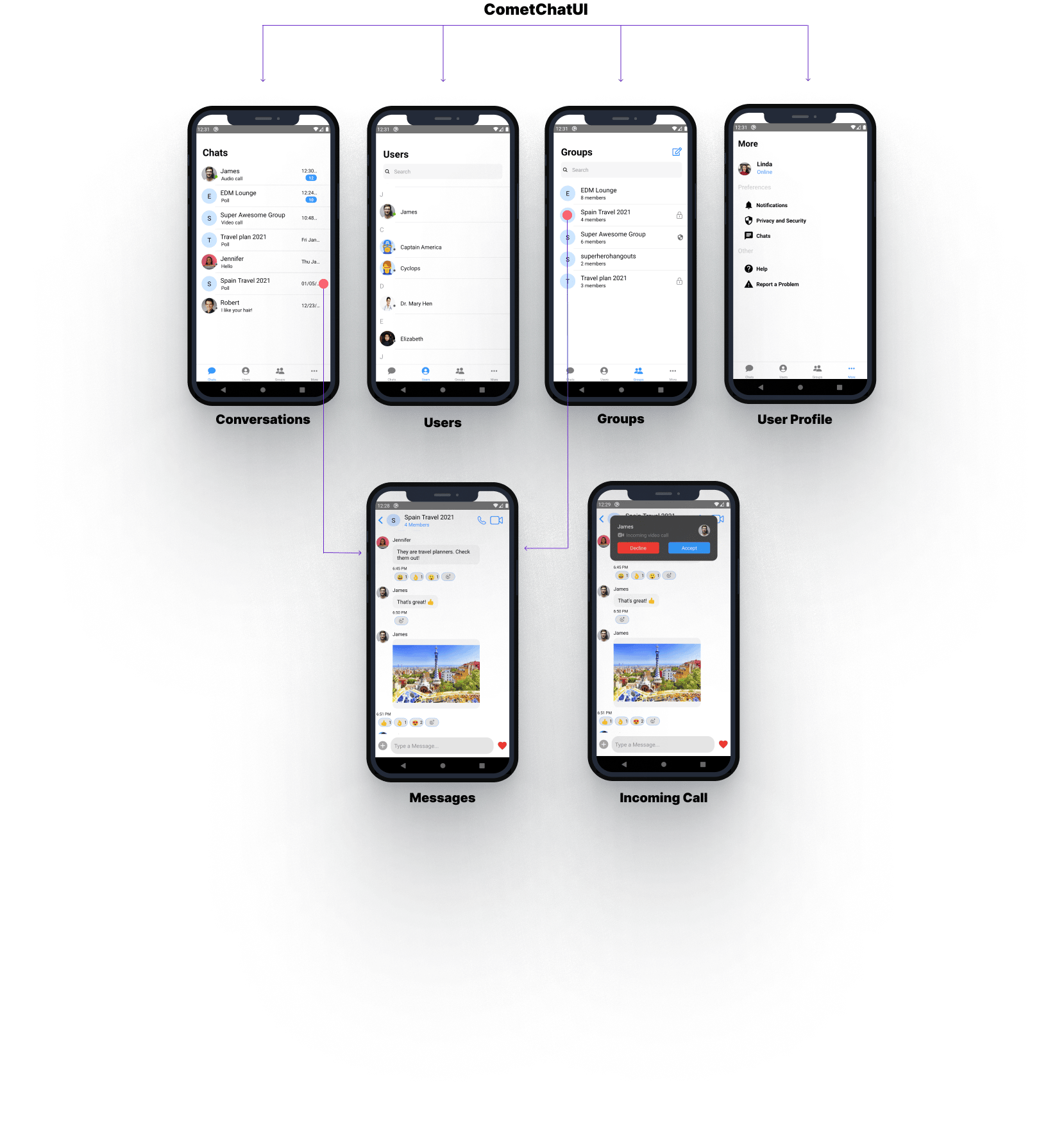

CometChatUI

CometChatUI is an option to launch a fully functional chat application using the UI Kit. In CometChatUI all the UI Components are interlinked and work together to launch a fully functional chat on your application.

JavaScript

import React from 'react';
import {View, Text} from 'react-native';
import {CometChatUI} from '../cometchat-pro-react-native-ui-kit';

export default function CometChatUIView() {
  return (
    <View style={{flex: 1}}>
      <CometChatUI />
    </View>
  );
}

CometChatUserListWithMessages

The CometChatUserListWithMessages is a component with a list of users. The component has all the necessary listeners and methods required to display the user’s list and shows the set of the messages/chats of the selected user

JavaScript

import { CometChatUserListWithMessages } from '../cometchat-pro-react-native-ui-kit';

function StackNavigator(props) {
  const Stack = createStackNavigator();

  return (
    <NavigationContainer>
      <Stack.Navigator
        headerMode="none"
        initialRouteName={"UserListWithMessages"}>
          <Stack.Screen name="UserListWithMessages" component={CometChatUserListWithMessages} />
      </Stack.Navigator>
    </NavigationContainer>
  );
}

If you want to use this as a child component,| Parameter | Description | Type | | --------------- | --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- | -------- | | type | Value should be string. defines the type of chat. Its value can be user or “group”. | Optional | | item | Value should be Object. The object will be of user or group depending on type. This is an example object for user
{ hasBlockedMe: false,
blockedByMe: false,
uid: ‘cometchat-uid-3’,
name: ‘Nancy Grace’,
avatar: ‘https://data-us.cometchat.io/assets/images/avatars/cometchat-uid-3.webp’,
lastActiveAt: 1614597611,
role: ‘default’,
status: ‘offline’,
} | Required | | loggedInUser | Value should be Object. This props takes the details of current logged in user, | Required | | actionGenerated | Value should be function. Tis is a callback function called when user perform certain actions on screen. List of actionType are as follow:
1)groupDeleted: This is called when user deletes the group.
2) membersUpdated: This is called when members of group are updated.
3)messageRead : This is called when last message is read.
4)messageComposed: is called when new message is composed.
5)messageDeleted: This is called when message is been deleted.
6)viewActualImage: This is called when user clicks on Image.
7)menuClicked: This is called when the menu in header has been clicked.
8)threadMessageComposed: This is called when new thread message has been composed
9)blockUser: This is called when user is blocked
10)updateThreadMessage: This is called when thread message is updated.
11)messageEdited: This is called when a message is edited.
12)groupUpdated: This is called when a group property has been updated. | Required | then use the below code.

JavaScript

import React from 'react';
import {View} from 'react-native';
import {CometChatUserListWithMessages} from '../cometchat-pro-react-native-ui-kit';

export default function CometChatUserListWithMessagesView({navigation}) {
  return (
    <View style={{flex: 1}}>
      <CometChatUserListWithMessages navigation={navigation}/>
    </View>
  );
}

CometChatGroupListWithMessages

The CometChatGroupWithMessages is a component with a list of groups. The component has all the necessary listeners and methods required to display the group’s list and shows the set of the messages/chats of the selected group

JavaScript

import { CometChatGroupListWithMessages } from '../cometchat-pro-react-native-ui-kit';

function StackNavigator(props) {
  const Stack = createStackNavigator();

  return (
    <NavigationContainer>
      <Stack.Navigator
        headerMode="none"
        initialRouteName={"GroupListWithMessages"}>
          <Stack.Screen name="GroupListWithMessages" component={CometChatGroupListWithMessages} />
      </Stack.Navigator>
    </NavigationContainer>
  );
}

If you want to use this as a child component, then use the below code.

JavaScript

import React from 'react';
import {View, Text} from 'react-native';
import {CometChatGroupListWithMessages} from '../cometchat-pro-react-native-ui-kit';

export default function CometChatGroupListWithMessagesView({navigation}) {
  return (
    <View style={{flex: 1}}>
      <CometChatGroupListWithMessages navigation={navigation} />
    </View>
  );
}

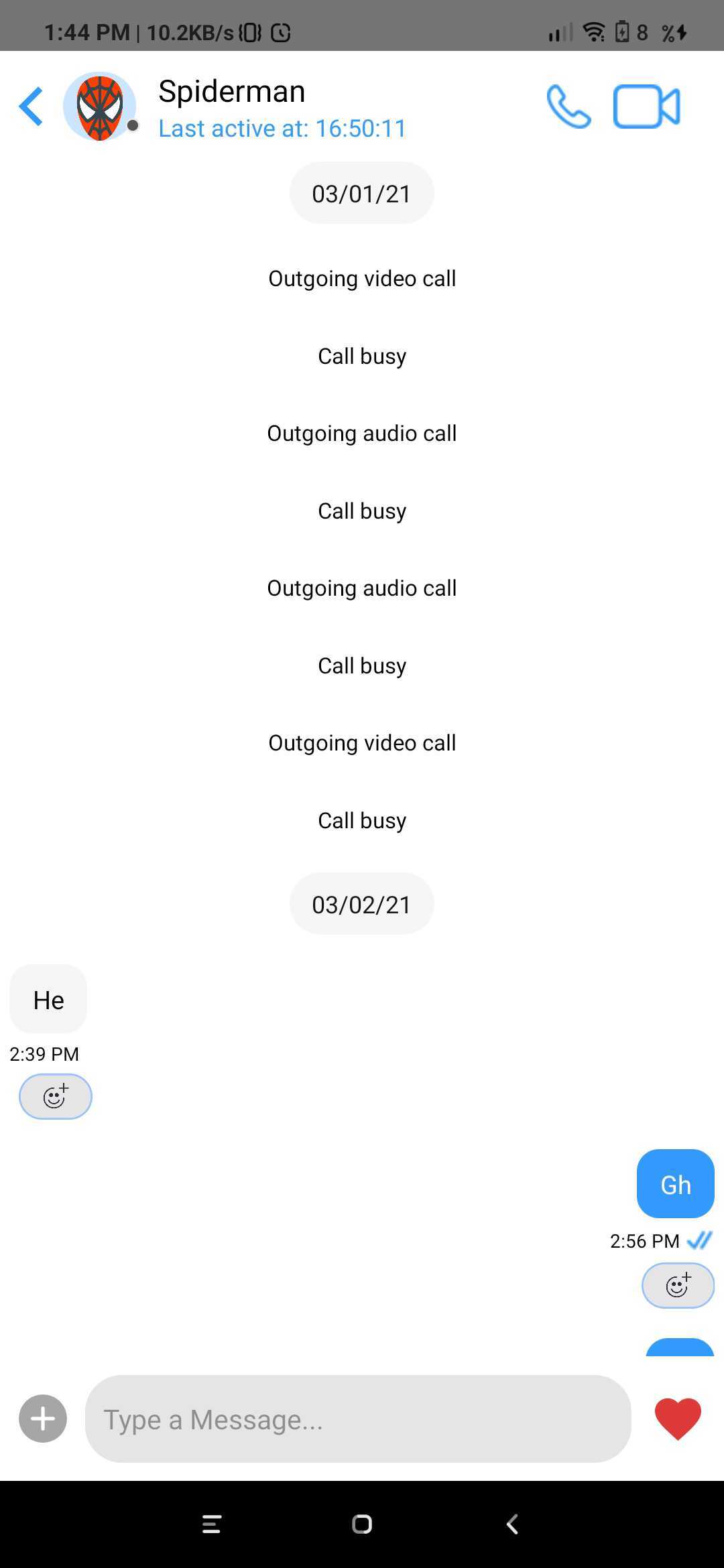

CometChatMessages

The CometChatMessages is a component with a list of messages/chats and shows the message component header and message composer.

JavaScript

import React, {useEffect, useState} from 'react';
import {View} from 'react-native';
import {CometChat} from '@cometchat-pro/react-native-chat';
import {CometChatMessages} from '../cometchat-pro-react-native-ui-kit';

export default function CometChatMessagesView({navigation}) {
  const [localUser, setLocalUser] = useState(null);
  useEffect(() => {
    var user = CometChat.getLoggedinUser().then(
      (user) => {
        console.log('user details:', {user});
        setLocalUser(user);
      },
      (error) => {
        console.log('error getting details:', {error});
      },
    );
  }, []);
  return (
    <View style={{flex: 1}}>
      {localUser ? (
        <CometChatMessages
          type={'user'}
          item={userOrGroupObject}//The object will be of user or group depending on type
          loggedInUser={localUser}
          actionGenerated={(actionType) => {
            console.log(actionType);
          }}
        />
      ) : null}
    </View>
  );
}

Parameter	Description	Type
type	Value should be string. defines the type of chat. Its value can be user or “group”.	Optional
item	Value should be Object. The object will be of user or group depending on type. This is an example object for user { hasBlockedMe: false, blockedByMe: false, uid: ‘cometchat-uid-3’, name: ‘Nancy Grace’, avatar: ‘https://data-us.cometchat.io/assets/images/avatars/cometchat-uid-3.webp’, lastActiveAt: 1614597611, role: ‘default’, status: ‘offline’, }	Required
loggedInUser	Value should be Object. This props takes the details of current logged in user,	Required
actionGenerated	Value should be function. Tis is a callback function called when user perform certain actions on screen. List of actionType are as follow: 1)groupDeleted: This is called when user deletes the group. 2) membersUpdated: This is called when members of group are updated. 3)messageRead : This is called when last message is read. 4)messageComposed: is called when new message is composed. 5)messageDeleted: This is called when message is been deleted. 6)viewActualImage: This is called when user clicks on Image. 7)menuClicked: This is called when the menu in header has been clicked. 8)threadMessageComposed: This is called when new thread message has been composed 9)blockUser: This is called when user is blocked 10)updateThreadMessage: This is called when thread message is updated. 11)messageEdited: This is called when a message is edited. 12)groupUpdated: This is called when a group property has been updated.	Required

CometChatConversationListWithMessages

The CometChatConversationListWithMessages is a component with a list of recent conversations. The component has all the necessary listeners and methods required to display the recent conversation list and shows the set of the messages/chats of the selected recent conversation

JavaScript

import { CometChatConversationListWithMessages } from '../cometchat-pro-react-native-ui-kit';

function StackNavigator(props) {
  const Stack = createStackNavigator();

  return (
    <NavigationContainer>
      <Stack.Navigator
        headerMode="none"
        initialRouteName={"ConversationListWithMessages"}>
          <Stack.Screen name="ConversationListWithMessages" component={CometChatConversationListWithMessages} />
      </Stack.Navigator>
    </NavigationContainer>
  );
}

If you want to use this as a child component, then use the below code.

JavaScript

import React from 'react';
import {View, Text} from 'react-native';
import {CometChatConversationListWithMessages} from '../cometchat-pro-react-native-ui-kit';

export default function CometChatConversationListWithMessagesView({
  navigation,
}) {
  return (
    <View style={{flex: 1}}>
      <CometChatConversationListWithMessages navigation={navigation} />
    </View>
  );
}

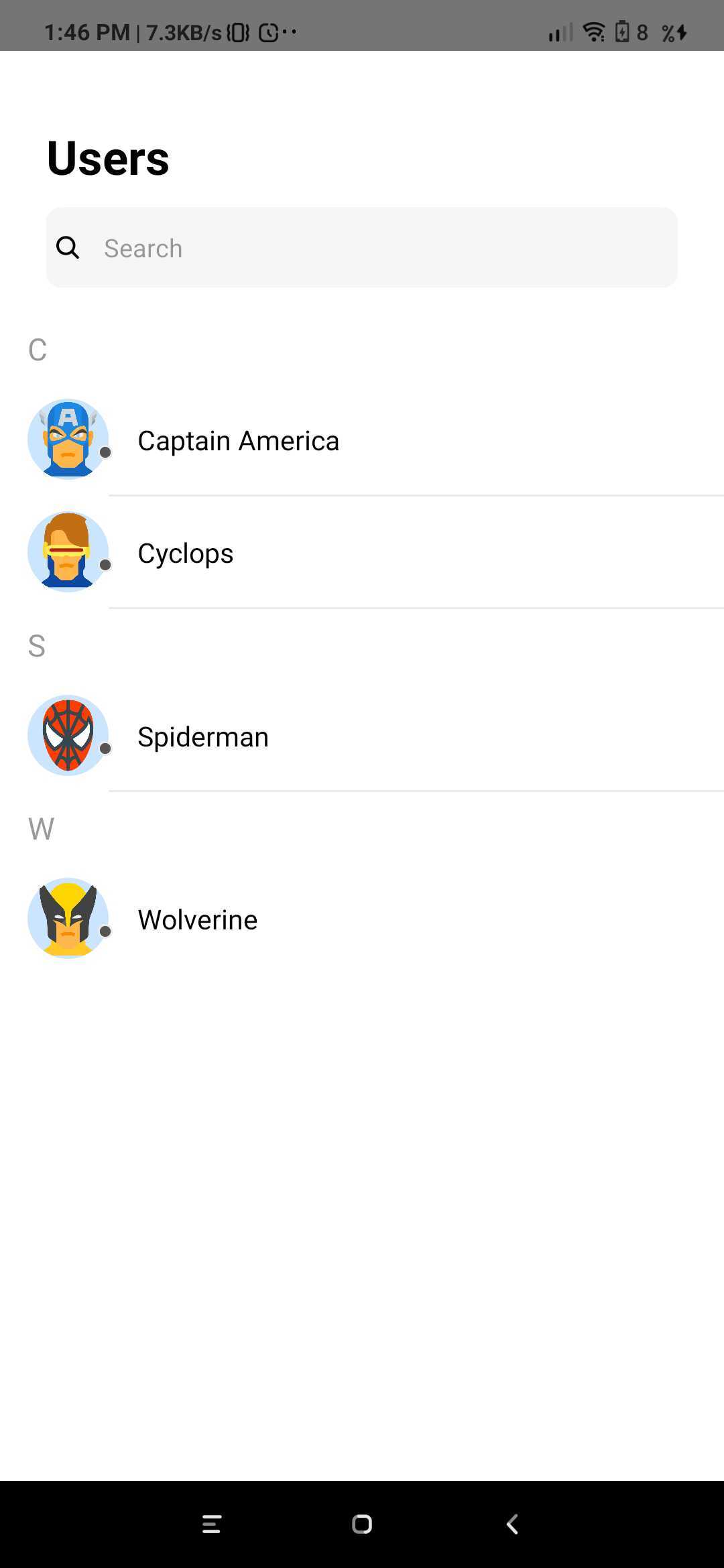

CometChatUserList

The CometChatUserList is a component that displays the list of users available to chat. You can use this component within your app if you wish to display the list of users.

JavaScript

import React from 'react';
import {View, Text} from 'react-native';
import {CometChatUserList} from '../cometchat-pro-react-native-ui-kit';

export default function CometChatUserListView({navigation}) {
  return (
    <View style={{flex: 1}}>
      <CometChatUserList
        friendsOnly={true}
        onItemClick={(item) => {
          console.log(item);
        }}
        navigation={navigation}
      />
    </View>
  );
}

Parameter	Description	Type
friendsOnly	Value could be Object or Number This property when set to true will return only the friends of the logged-in user Default value is false	Optional
onItemClick	Value should be function This is a callback called when a user is clicked on user list	Optional
navigation	Value should be Object. Pass the navigation object, if you want to refresh list on focus	Optional

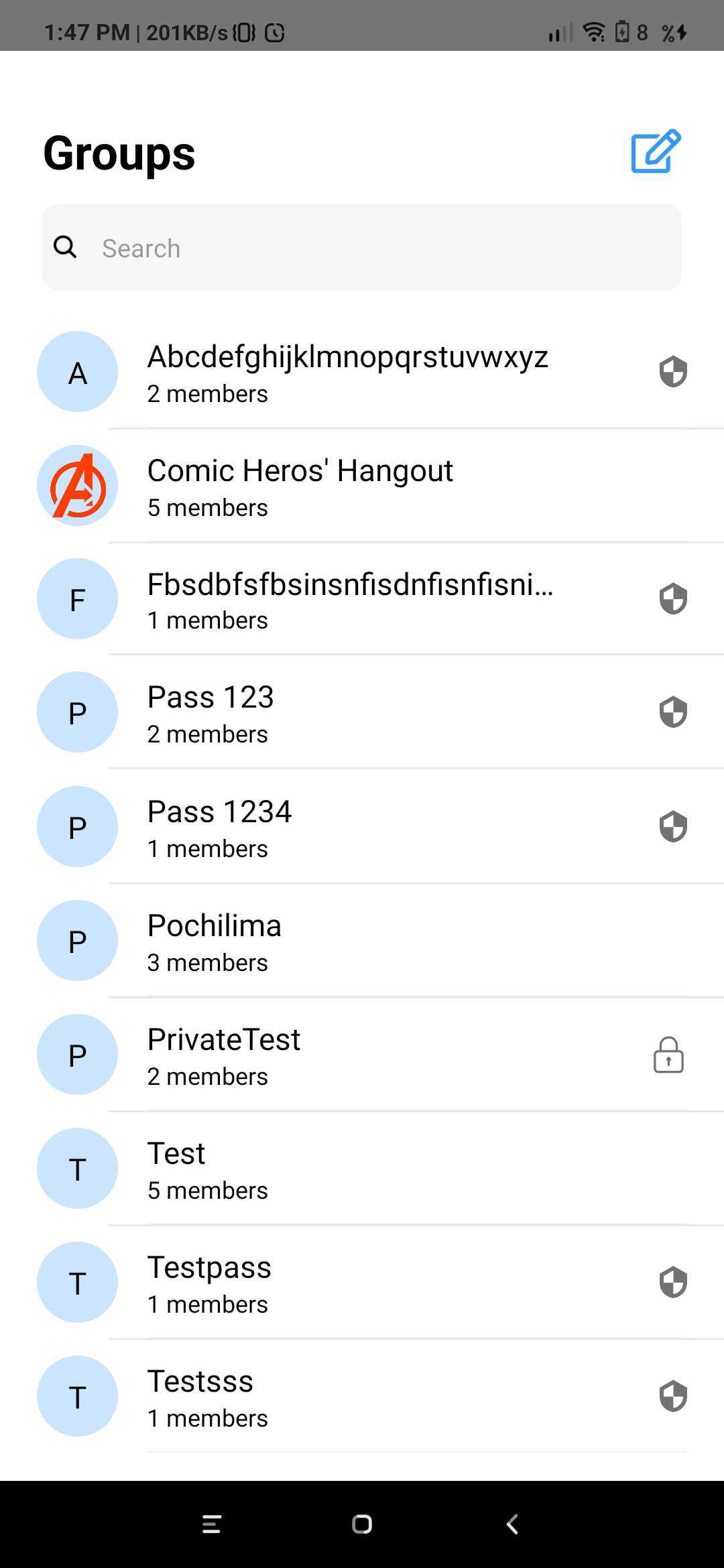

CometChatGroupList

The CometChatGroupList is a component that displays the list of groups available. You can use this component within your app if you wish to display the list of groups.

JavaScript

import { CometChatGroupList } from '../cometchat-pro-react-native-ui-kit';

function StackNavigator(props) {
  const Stack = createStackNavigator();

  return (
    <NavigationContainer>
      <Stack.Navigator
        headerMode="none"
        initialRouteName={"GroupList"}>
          <Stack.Screen name="GroupList" component={CometChatGroupList} />
      </Stack.Navigator>
    </NavigationContainer>
  );
}

If you want to use this as a child component, then use the below code.

JavaScript

import React from 'react';
import {View} from 'react-native';
import {CometChatGroupList} from '../cometchat-pro-react-native-ui-kit';

export default function CometChatGroupListView({navigation}) {
  return (
    <View style={{flex: 1}}>
      <CometChatGroupList navigation={navigation} />
    </View>
  );
}

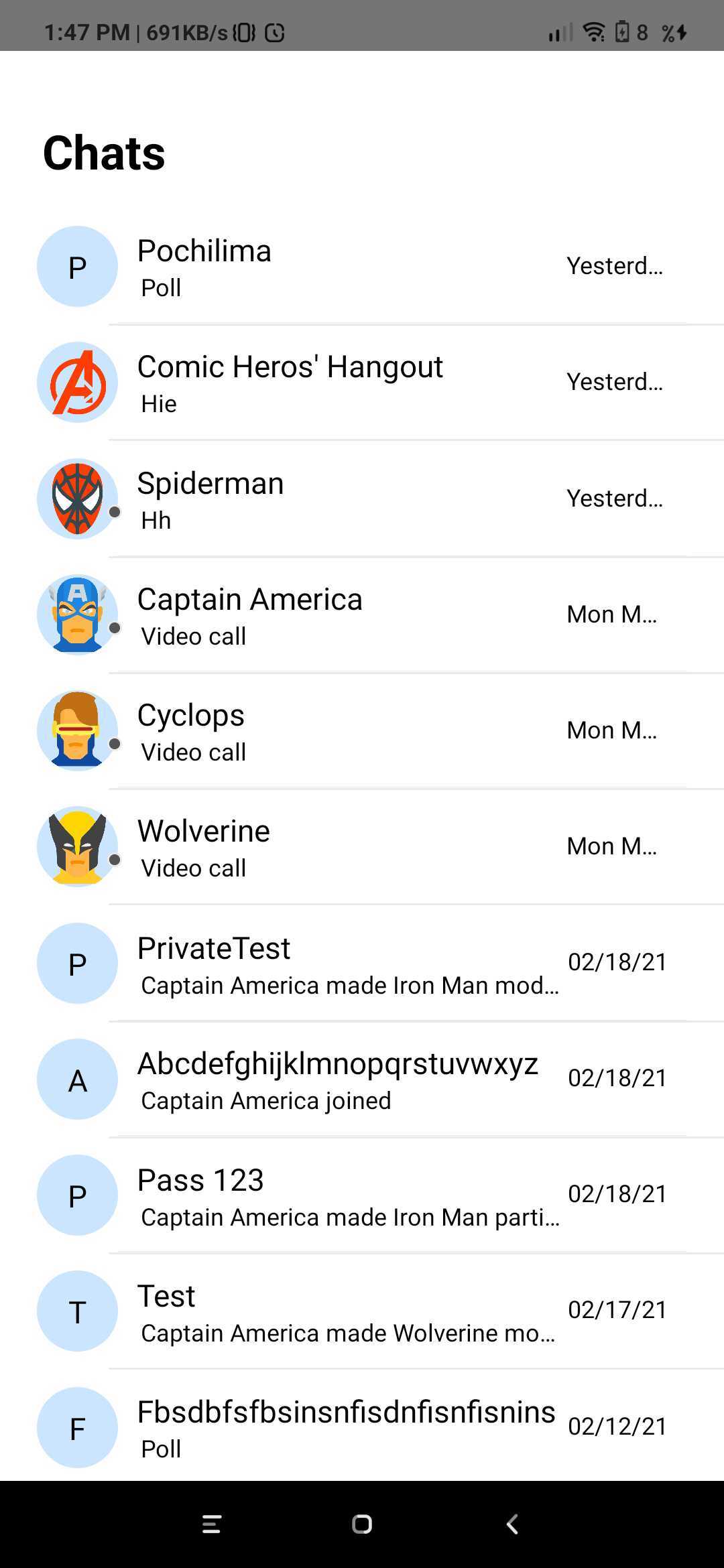

CometChatConversationList

You can use the CometChatConversationList component to display the list of recent conversations that the logged-in user was a part of.

JavaScript

import { CometChatConversationList } from '../cometchat-pro-react-native-ui-kit';

function StackNavigator(props) {
  const Stack = createStackNavigator();

  return (
    <NavigationContainer>
      <Stack.Navigator
        headerMode="none"
        initialRouteName={"ConversationList"}>
          <Stack.Screen name="ConversationList" component={CometChatConversationList} />
      </Stack.Navigator>
    </NavigationContainer>
  );
}

If you want to use this as a child component, then use the below code.

JavaScript

import React from 'react';
import {View} from 'react-native';
import {CometChatConversationList} from '../cometchat-pro-react-native-ui-kit';

export default function CometChatConversationListView({navigation}) {
  return (
    <View style={{flex: 1}}>
      <CometChatConversationList navigation={navigation} />
    </View>
  );
}

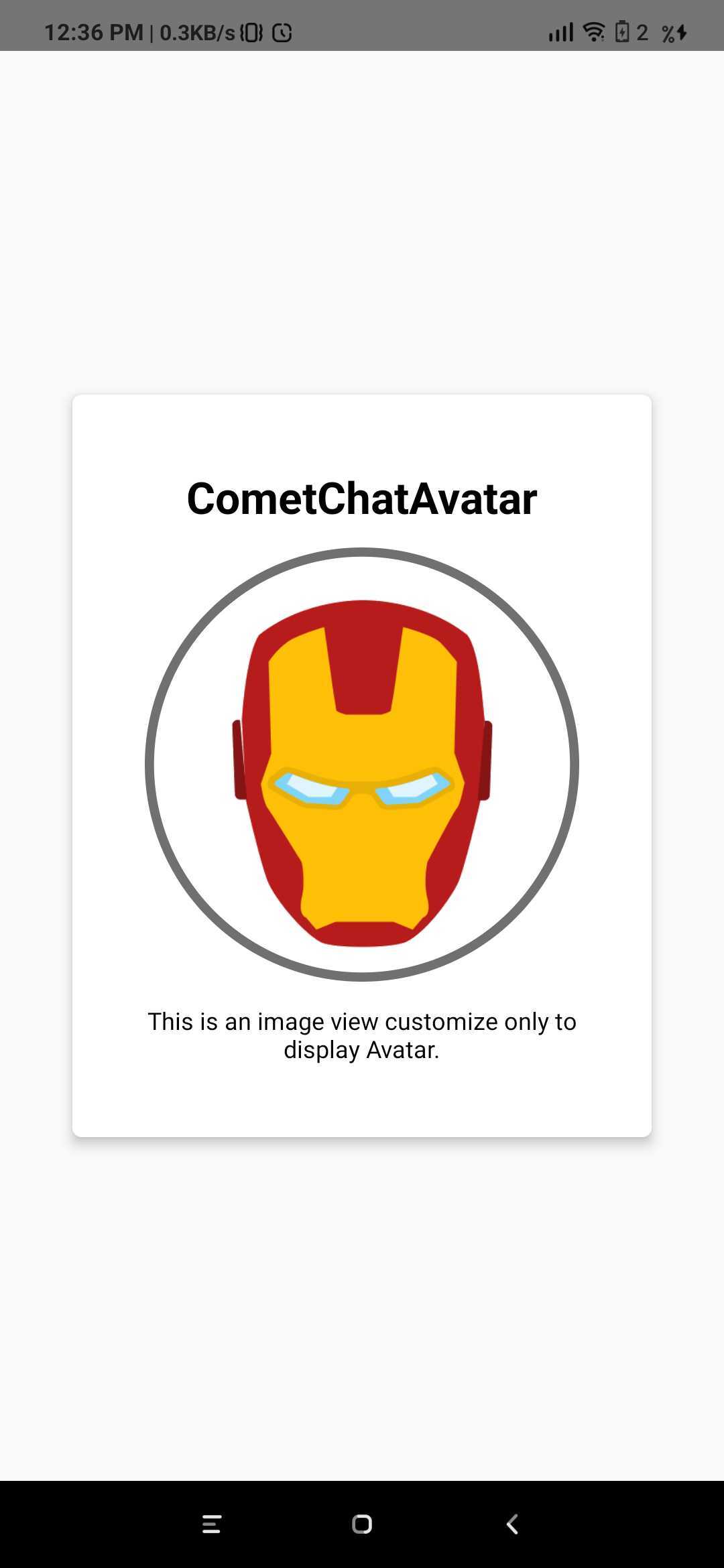

CometChatAvatar

This is an image view customize only to display Avatar.

JavaScript

import React from 'react';
import {View, Text} from 'react-native';
import {CometChatAvatar} from '../cometchat-pro-react-native-ui-kit';
export default function AvatarView({user}) {
  return (
    <View style={{flex: 1, justifyContent: 'center'}}>
      <View
        style={{
          margin: '10%',
          elevation: 5,
          backgroundColor: '#fff',
          padding: '10%',
          alignItems: 'center',
          borderRadius: 5,
        }}>
        <Text style={{fontWeight: 'bold', fontSize: 26, marginBottom: '5%'}}>
          CometChatAvatar
        </Text>
        <CometChatAvatar
          image={{uri: user.avatar}}
          borderWidth={5}
          cornerRadius={1000}
          borderColor={'#707070'}
          textColor={'#000'}
        />
        <Text style={{marginTop: '5%', textAlign: 'center'}}>
          This is an image view customize only to display Avatar.
        </Text>
      </View>
    </View>
  );
}

Parameter	Description	Type
image	Value could be Object or Number This property sets the source of avatar image.	Optional
name	Value should be String This property sets the user name in avatar.	Optional
borderWidth	Value should be Number. This property sets the width of the component’s four borders. Default value is 1	Optional
cornerRadius	Value should be Number. This property sets border radius of the component. Default value is 1000.	Optional
textColor	Value should be Color. This property sets the text color of component. Default value is black	Optional

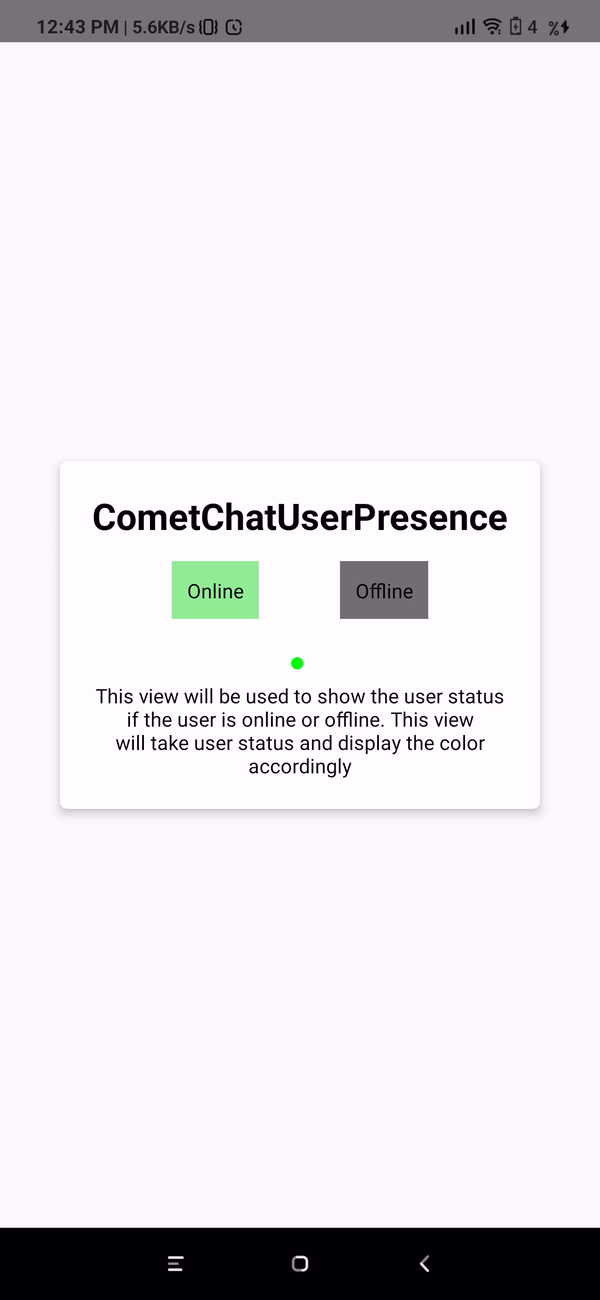

CometChatUserPresence

This component will be used to show the user’s online or offline status. This component will show the color based on the user’s status.

JavaScript

import React, {useState} from 'react';
import {View, Text, TouchableOpacity} from 'react-native';
import {CometChatUserPresence} from '../cometchat-pro-react-native-ui-kit';
export default function CometChatUserPresenceView({user}) {
  const [status, setStatus] = useState(user.status);
  return (
    <View style={{flex: 1, justifyContent: 'center'}}>
      <View
        style={{
          margin: '10%',
          elevation: 5,
          backgroundColor: '#fff',
          padding: '5%',
          alignItems: 'center',
          borderRadius: 5,
        }}>
        <Text style={{fontWeight: 'bold', fontSize: 26, marginBottom: '5%'}}>
          CometChatUserPresence
        </Text>

        <View
          style={{
            flexDirection: 'row',
            justifyContent: 'space-evenly',
            width: '100%',
          }}>
          <TouchableOpacity
            onPress={() => setStatus('online')}
            style={{
              justifyContent: 'center',
              alignItems: 'center',
              padding: 10,
              backgroundColor: 'lightgreen',
            }}>
            <Text>Online</Text>
          </TouchableOpacity>
          <TouchableOpacity
            onPress={() => setStatus('')}
            style={{
              justifyContent: 'center',
              alignItems: 'center',
              padding: 10,
              backgroundColor: '#707070',
            }}>
            <Text>Offline</Text>
          </TouchableOpacity>
        </View>
        <View style={{position: 'relative'}}>
          <CometChatUserPresence
            status={status}
            borderWidth={0.5}
            borderColor={'red'}
            cornerRadius={0}
          />
        </View>
        <Text style={{marginTop: '15%', textAlign: 'center'}}>
          This view will be used to show the user status if the user is online
          or offline. This view will take user status and display the color
          accordingly
        </Text>
      </View>
    </View>
  );
}

Parameter	Description	Type
borderWidth	Value should be Number This property sets the width of the component’s four borders Default value is 1	Optional
borderColor	Value should be Color This property sets the border colour of the component. Default value is #AAA	Optional
cornerRadius	Value should be Number. This property sets border radius of the component Default value is 4.5	Optional
status	Value should be String Takes the status of user	Optional

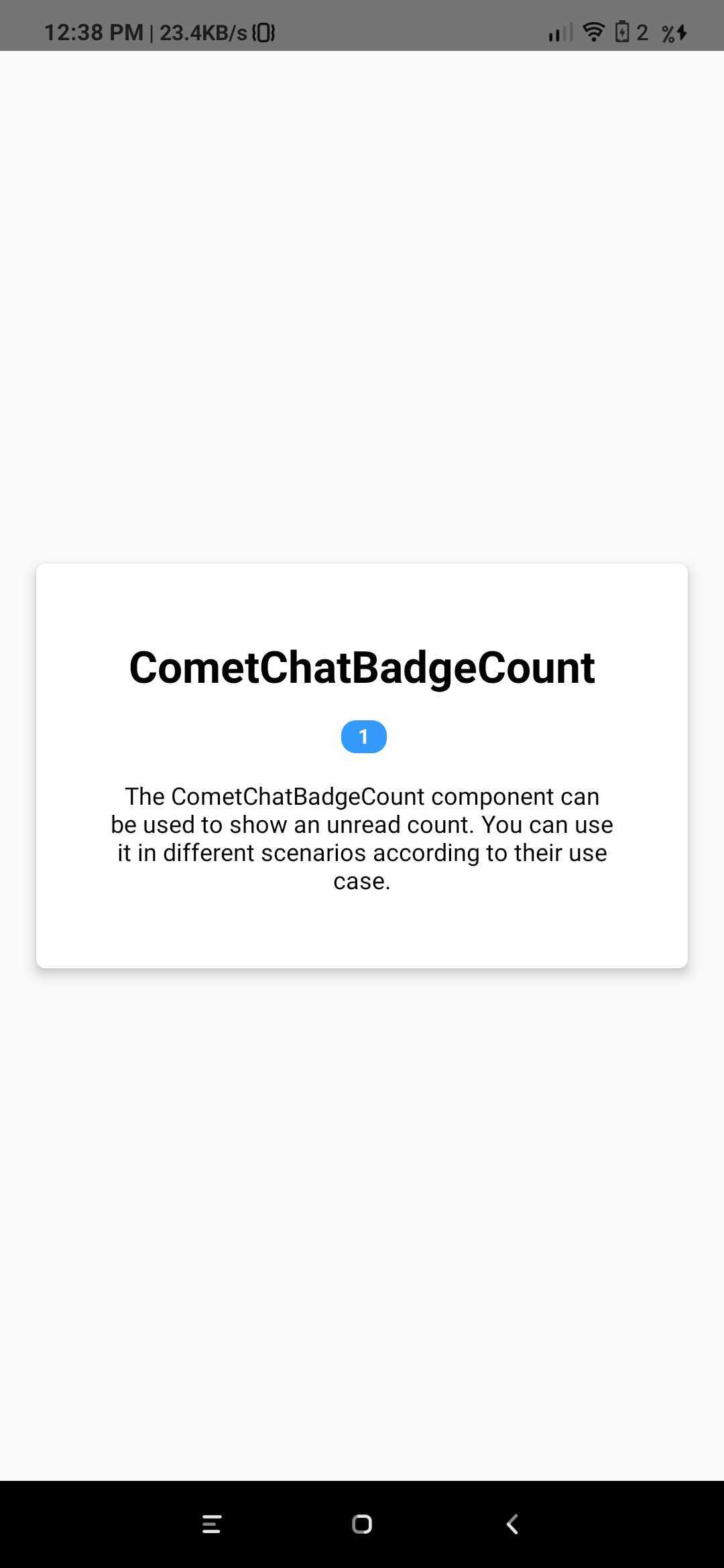

CometChatBadgeCount

The CometChatBadgeCount component can be used to show an unread count. You can use it in different scenarios according to their use case.

JavaScript

import React from 'react';
import {View, Text} from 'react-native';
import {CometChatBadgeCount} from '../cometchat-pro-react-native-ui-kit';
export default function CometChatBadgeCountView() {
  return (
    <View style={{flex: 1, justifyContent: 'center'}}>
      <View
        style={{
          margin: '5%',
          elevation: 5,
          backgroundColor: '#fff',
          padding: '10%',
          alignItems: 'center',
          borderRadius: 5,
        }}>
        <Text style={{fontWeight: 'bold', fontSize: 26, marginBottom: '5%'}}>
          CometChatBadgeCount
        </Text>
        <View>
          <CometChatBadgeCount count={1} />
        </View>
        <Text style={{marginTop: '5%', textAlign: 'center'}}>
          The CometChatBadgeCount component can be used to show an unread count.
          You can use it in different scenarios according to their use case.
        </Text>
      </View>
    </View>
  );
}

Parameter	Description	Type
count	Value should be String. This property sets the count on the badge	Optional

​CometChatUI

​CometChatUserListWithMessages

​CometChatGroupListWithMessages

​CometChatMessages

​CometChatConversationListWithMessages

​CometChatUserList

​CometChatGroupList

​CometChatConversationList

​CometChatAvatar

​CometChatUserPresence

​CometChatBadgeCount

CometChatUI

CometChatUserListWithMessages

CometChatGroupListWithMessages

CometChatMessages

CometChatConversationListWithMessages

CometChatUserList

CometChatGroupList

CometChatConversationList

CometChatAvatar

CometChatUserPresence

CometChatBadgeCount
