Outgoing Call - CometChat Docs

AI Integration Quick Reference

{
  "component": "CometChatOutgoingCall",
  "package": "@cometchat/chat-uikit-react",
  "import": "import { CometChatOutgoingCall } from \"@cometchat/chat-uikit-react\";",
  "description": "Displays the outgoing call screen with receiver info and a cancel button while waiting for the call to be answered.",
  "cssRootClass": ".cometchat-outgoing-call",
  "primaryOutput": {
    "prop": "onCallCanceled",
    "type": "() => void"
  },
  "props": {
    "data": {
      "call": {
        "type": "CometChat.Call",
        "required": true,
        "note": "The CometChat call object representing the outgoing call"
      }
    },
    "callbacks": {
      "onCallCanceled": "() => void",
      "onError": "((error: CometChat.CometChatException) => void) | null"
    },
    "sound": {
      "disableSoundForCalls": { "type": "boolean", "default": false },
      "customSoundForCalls": { "type": "string", "default": "built-in" }
    },
    "viewSlots": {
      "titleView": "ReactNode",
      "subtitleView": "ReactNode",
      "avatarView": "ReactNode",
      "cancelButtonView": "ReactNode"
    }
  },
  "events": [],
  "eventsReceived": [],
  "sdkListeners": [],
  "types": {}
}

Overview

CometChatOutgoingCall is a purely presentational component that displays the outgoing call screen while waiting for the receiver to answer. It shows the receiver’s name, avatar, a “Calling…” subtitle, and an end-call button.

Live Preview — interact with the default outgoing call screen.Open in Storybook ↗

The component handles:

Displaying receiver name and avatar from the call object
“Calling…” subtitle text
End-call/cancel button
Outgoing call sound playback (looping while mounted, pauses on unmount)

Required prop: The call prop is required. The component needs a valid CometChat.Call object to render receiver information.

Typical usage: CometChatOutgoingCall is typically rendered by CometChatMessageHeader or CometChatIncomingCall internally when a call is initiated, but it can be used standalone.

Usage

Flat API

import { CometChatOutgoingCall } from "@cometchat/chat-uikit-react";

function OutgoingCallScreen({ call }: { call: CometChat.Call }) {
  return (
    <CometChatOutgoingCall
      call={call}
      onCallCanceled={() => {
        console.log("Call canceled by user");
        // Cancel the call via SDK
        CometChat.rejectCall(call.getSessionId(), CometChat.CALL_STATUS.CANCELLED);
      }}
    />
  );
}

Standalone Usage Example

import { useState } from "react";
import { CometChat } from "@cometchat/chat-sdk-javascript";
import { CometChatOutgoingCall } from "@cometchat/chat-uikit-react";

function CallManager() {
  const [outgoingCall, setOutgoingCall] = useState<CometChat.Call | null>(null);

  const initiateCall = async (receiverUID: string) => {
    const call = new CometChat.Call(
      receiverUID,
      CometChat.CALL_TYPE.VIDEO,
      CometChat.RECEIVER_TYPE.USER
    );
    const initiatedCall = await CometChat.initiateCall(call);
    setOutgoingCall(initiatedCall);
  };

  const cancelCall = () => {
    if (outgoingCall) {
      CometChat.rejectCall(
        outgoingCall.getSessionId(),
        CometChat.CALL_STATUS.CANCELLED
      );
      setOutgoingCall(null);
    }
  };

  return (
    <div>
      {outgoingCall && (
        <CometChatOutgoingCall
          call={outgoingCall}
          onCallCanceled={cancelCall}
        />
      )}
    </div>
  );
}

Actions and Events

Callback Props

Prop	Signature	Fires when
`onCallCanceled`	`() => void`	User clicks the cancel/end button
`onError`	`((error: CometChat.CometChatException) => void) \| null`	SDK error occurs

Events Emitted

This component does not emit any UI events.

Events Received

This component does not subscribe to any UI events from other components.

SDK Listeners (Automatic)

This component does not attach any SDK listeners. It is purely presentational — the parent component is responsible for managing call state transitions (e.g., listening for onOutgoingCallAccepted or onOutgoingCallRejected).

Customization

View Props

Use view props to replace sections of the default UI while keeping the component’s behavior intact:

<CometChatOutgoingCall
  call={call}
  titleView={<span className="custom-title">{call.getReceiver().getName()}</span>}
  subtitleView={<span>Ringing...</span>}
  avatarView={<img src={call.getReceiver().getAvatar()} alt="avatar" />}
  cancelButtonView={<button onClick={handleCancel}>End Call</button>}
/>

Slot	Type	Replaces
`titleView`	`ReactNode`	Receiver name
`subtitleView`	`ReactNode`	”Calling…” text
`avatarView`	`ReactNode`	Receiver avatar
`cancelButtonView`	`ReactNode`	End-call button

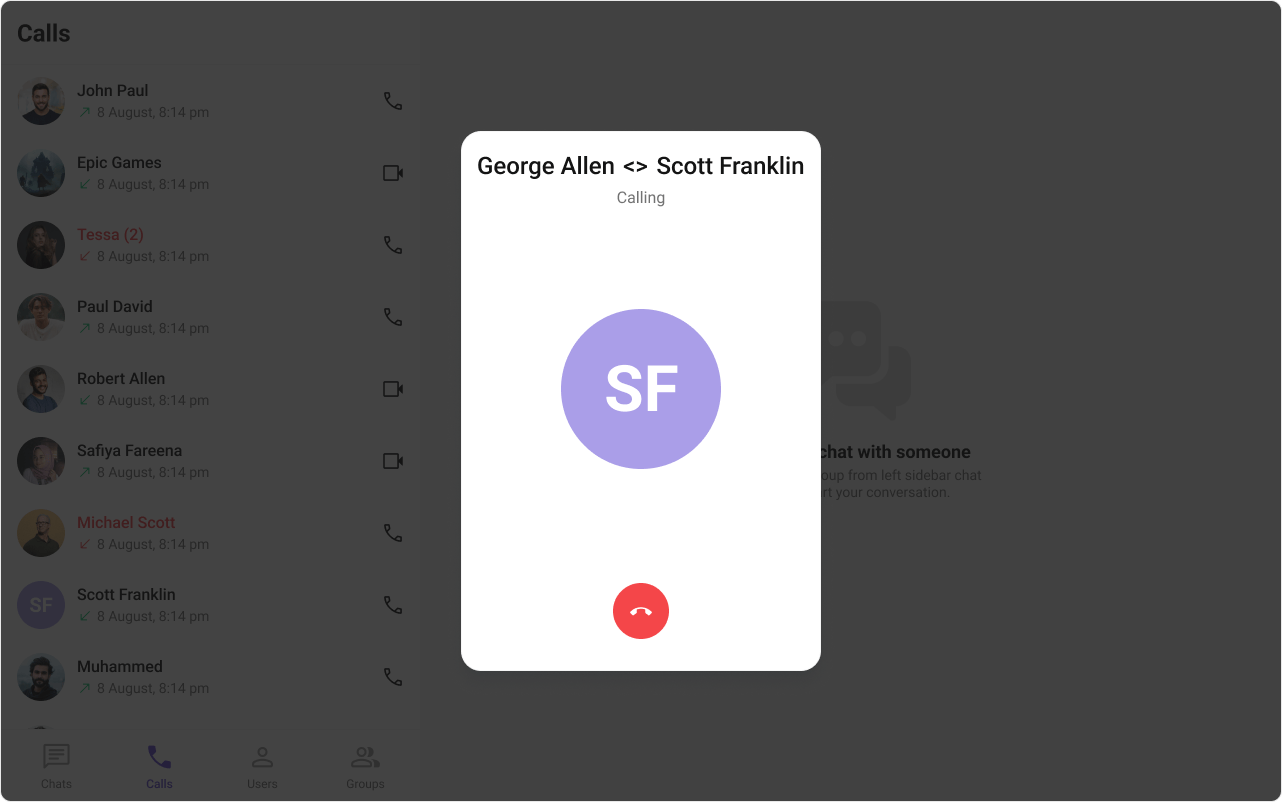

titleView

TypeScript
CSS

import { CometChat } from "@cometchat/chat-sdk-javascript";
import { CometChatOutgoingCall } from "@cometchat/chat-uikit-react";

function OutgoingCallCustomTitle({ call }: { call: CometChat.Call }) {
  return (
    <CometChatOutgoingCall
      call={call}
      titleView={
        <div className="outgoing-call__title">
          {call.getCallInitiator().getName()} {" <> "} {call.getCallReceiver().getName()}
        </div>
      }
    />
  );
}

.outgoing-call__title {
  color: #141414;
  text-align: center;
  font: 500 24px Roboto;
}

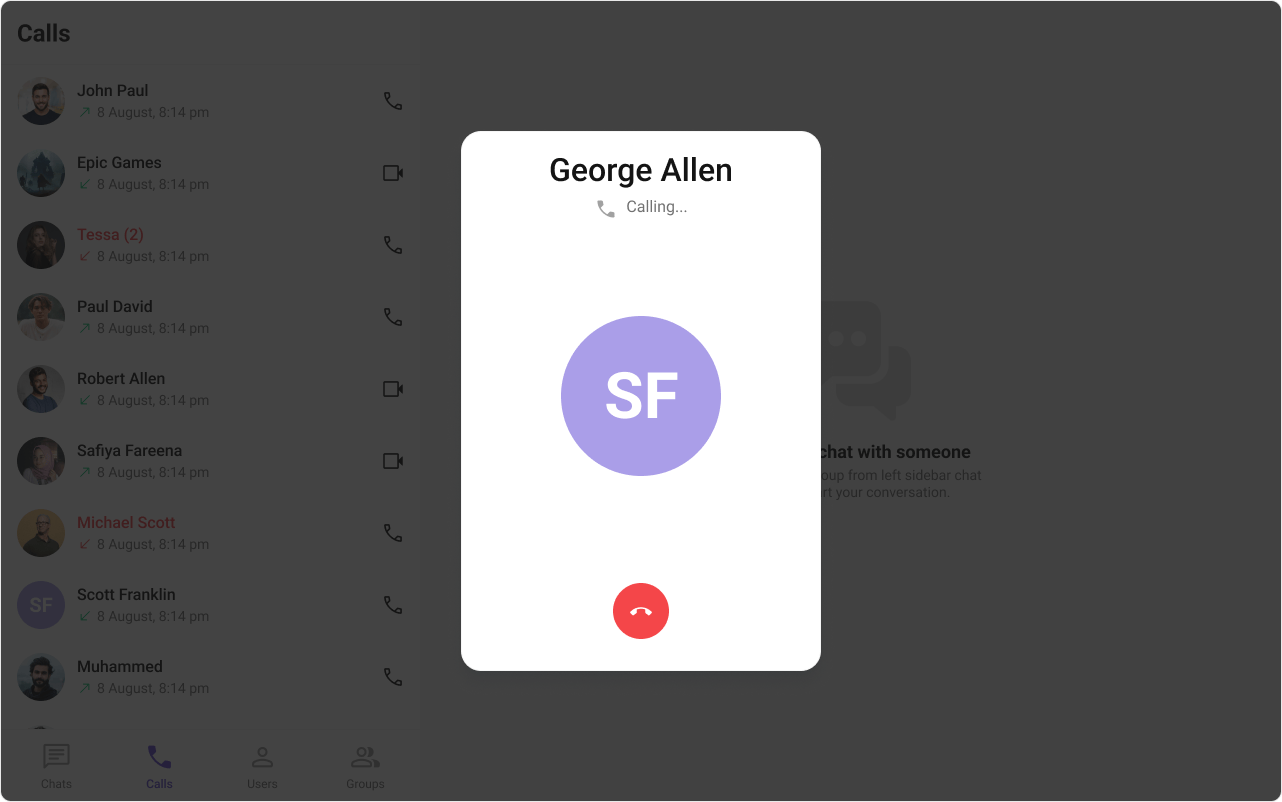

subtitleView

TypeScript
CSS

import { CometChat } from "@cometchat/chat-sdk-javascript";
import { CometChatOutgoingCall } from "@cometchat/chat-uikit-react";

function OutgoingCallCustomSubtitle({ call }: { call: CometChat.Call }) {
  return (
    <CometChatOutgoingCall
      call={call}
      subtitleView={
        <div className="outgoing-call__subtitle">
          <div className="outgoing-call__subtitle-icon" />
          {"Calling..."}
        </div>
      }
    />
  );
}

.outgoing-call__subtitle {
  display: flex;
  justify-content: center;
  align-items: flex-start;
  gap: 8px;
  color: #727272;
  text-align: center;
  font: 400 16px Roboto;
}

.outgoing-call__subtitle-icon {
  background: #a1a1a1;
  height: 24px;
  width: 24px;
}

avatarView

TypeScript
CSS

import { CometChat } from "@cometchat/chat-sdk-javascript";
import { CometChatOutgoingCall, CometChatAvatar } from "@cometchat/chat-uikit-react";

function OutgoingCallCustomAvatar({ call }: { call: CometChat.Call }) {
  return (
    <CometChatOutgoingCall
      call={call}
      avatarView={
        <div className="outgoing-call__avatar">
          <CometChatAvatar.Root
            name={call.getCallReceiver()?.getName()}
            image={(call.getCallReceiver() as CometChat.User)?.getAvatar()}
          >
            <CometChatAvatar.Image />
            <CometChatAvatar.Initials />
          </CometChatAvatar.Root>
        </div>
      }
    />
  );
}

.outgoing-call__avatar .cometchat-avatar {
  width: 160px;
  height: 160px;
  border-radius: 20px;
}

CSS Styling

Override design tokens on the component selector:

.cometchat-outgoing-call {
  --cometchat-background-color-01: #1a1a2e;
  --cometchat-text-color-primary: #ffffff;
}

.cometchat-outgoing-call__button {
  background: var(--cometchat-error-color);
}

Props

The call prop is required. All other props are optional.

call

The CometChat call object representing the outgoing call. Required.


Type	`CometChat.Call`
Required	Yes

disableSoundForCalls

Disable the outgoing call sound.


Type	`boolean`
Default	`false`

customSoundForCalls

Custom sound URL to play during the outgoing call (replaces the built-in sound).


Type	`string`
Default	Built-in outgoing call sound

onCallCanceled

Callback when the user clicks the cancel/end button.


Type	`() => void`
Default	`undefined`

onError

Callback when an SDK error occurs.


Type	`((error: CometChat.CometChatException) => void) \| null`
Default	`null`

titleView

Custom view that replaces the receiver name.


Type	`ReactNode`
Default	`undefined`

subtitleView

Custom view that replaces the “Calling…” text.


Type	`ReactNode`
Default	`undefined`

avatarView

Custom view that replaces the receiver avatar.


Type	`ReactNode`
Default	`undefined`

cancelButtonView

Custom view that replaces the end-call button.


Type	`ReactNode`
Default	`undefined`

className

Additional CSS class name applied to the root element.


Type	`string`
Default	`undefined`

CSS Selectors

Target	Selector
Root container	`.cometchat-outgoing-call`
Title container	`.cometchat-outgoing-call__title-container`
Title	`.cometchat-outgoing-call__title`
Subtitle	`.cometchat-outgoing-call__subtitle`
Avatar	`.cometchat-outgoing-call__avatar`
Cancel button	`.cometchat-outgoing-call__button`
Cancel button icon	`.cometchat-outgoing-call__button-icon`

Next Steps

Incoming Call

Handle incoming call notifications with accept/decline actions

Call Logs

Browse call history and re-initiate calls

Theming

Customize colors, fonts, and spacing
